High Frequency Welded Pipe Mill 530mm Diameter 25m/min

Name: High Frequency Welded Pipe Mill 530mm Diameter 25m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG530
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG530

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG530

Product Name:

High Frequency Welded Pipe Mill Diameter 530mm Speed 25m / Min

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

Max 25m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

325-530mm

Warranty:

1 Year

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

530mm High Frequency Welded Pipe Mill

Welded Pipe Mill 25m / Min

Green High Frequency Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

High Frequency Welded Pipe Mill Diameter 530mm Speed 25m/Min

Product Specifications

Attribute	Value
Product Name	High Frequency Welded Pipe Mill Diameter 530mm Speed 25m/Min
After-sales Service	Engineers available to service machinery overseas
Pipe Material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	Max 25m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	325-530mm
Warranty	1 year

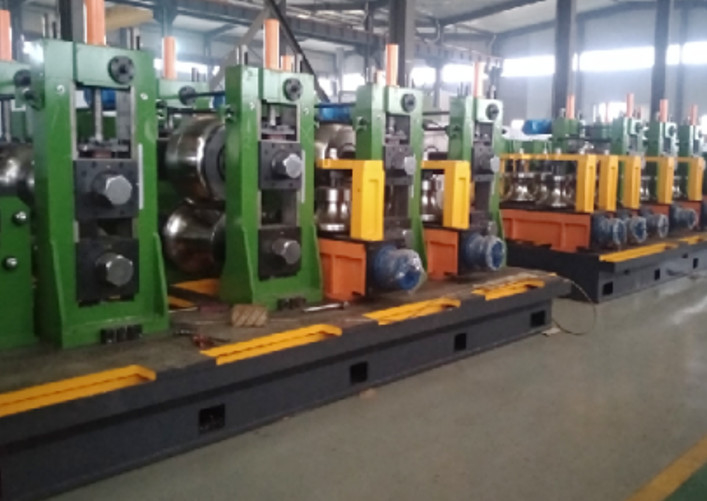

Large Diameter Pipe 530mm Speed 25m/min High Frequency Welded Pipe Mill

Product Information

The HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diameter φ325-530mm, thickness 4-9mm).

Utilizing FFX molding technology, this equipment employs the most economical and efficient forming process to continuously bend material into seamed tubes. The specially designed roll structure and adjustment system adapt to all product sizes and specifications without requiring roll replacement.

The closed-hole type frame features a three-frame four-high rolling mill. Rolls are replaced according to product outer diameters, with a hydraulic-driven quick-change system that enables specification changes in minutes.

Available Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service Commitment

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sales and after-sales support including workshop design and production output planning
Extended engineer support available for months or up to one year to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
