200x200mm One Roller Forming Automatic Tube Mill Equipment High Accuracy

Name: 200x200mm One Roller Forming Automatic Tube Mill Equipment High Accuracy
Brand: TENGTIAN
SKU: HG200
Rating: 4.9 (135 reviews)

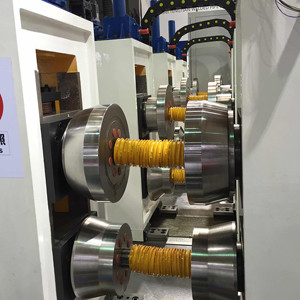

Large Image : 200x200mm One Roller Forming Automatic Tube Mill Equipment High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	standard export package
Delivery Time:	90 wording days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 set/month

Contact Now

Detailed Product Description

Machine Name:	Automatic Tube Mill	Product:	Square Pipe
Feature:	Precision	Material:	Carbon Steel And Galvanized Steel
Other Pipe:	Rectangular Pipe	Max Size:	200x200mm
Thickness:	3mm	Length:	3-6m
Rollers:	Not Include	Model:	200x200
Key Words:	Automatic Tube Mill
High Light:	One Roller Forming Automatic Tube Mill , 200x200mm Automatic Tube Mill , 200x200mm Tube Mill Equipment

200x200mm One Roller Forming Automatic Tube Mill

Automatic tube mill General Introduction

HG200 Automatic tube mill is designed to produce square pipe 100x100-200x200mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG200 production line adopts the double-radius hole style of design .

Automatic tube mill Main Parameters and Specifications

(1)Material Specifications:
Standard	Internatioanl standard tube mill machine
Material	galvanized steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	400-800mm
Strip Thickness:	1-3mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤4T
(2)Pipe Specification
Pipe Diameter	Square pipe :100x100 -200x200mm
Length	3-6m
Pipe-cutting Precision	0-6mm
Forming Speed	max 90m/min for 2 mm thickness
(3)The buyer should self-supply
Work shop	60x12m, H＞5m(crane to ground)
Power	Approx.3500KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)	Flow:30+30 CBM Pool Volume:40m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

Automatic tube mill Working Process

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
