114mm Tube Mill Machine for Round and Square Pipes 3mm Thickness

Name: 114mm Tube Mill Machine for Round and Square Pipes 3mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG114

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG114

Machine Name:

Tube Mill Machine

Product:

Round Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Square Pipe

Max Size:

114mm

Thickness:

3mm

Length:

3-6m

Rollers:

Not Include

Model:

114

Key Words:

Tube Mill Machine

Highlight:

High Light

Highlight:

144mm Erw Steel Pipe Mill

144mm Pipe Mill Machine

Erw Steel Pipe Mill International Standard

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

144mm And 4.5" ERW Tube Mill Machine International Standard

Attribute	Value
Machine Name	Tube Mill Machine
Product	Round pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Square pipe
Max size	114mm
Thickness	3mm
Length	3-6m
Rollers	Not included
Model	114

Product Description

The HG114 Automatic Tube Mill is designed to produce square pipes from 50-114mm and corresponding size round pipes with thickness ranging from 1-3mm. Utilizing advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.

Key Features

Double-radius hole style design for improved efficiency
Optimized for both operating characteristics and safety
Reduced roller cost while maintaining high productivity
Precision manufacturing for consistent quality output

Technical Specifications

Material Specifications:

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 150-360mm

Strip Thickness: 1-3mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤4T

Pipe Specifications:

Pipe Diameter: Round pipe 50-114mm

Length: 3-6m

Pipe-cutting Precision: 0-6mm

Forming Speed: Max 90m/min for 2mm thickness

Buyer-Supplied Requirements:

Workshop: 60x12m, H＞5m (crane to ground)

Power: Approx. 3500KW 380V/60Hz/3phases

Circulation Cooling Water: Flow:30+30 CBM, Pool Volume:40m³

Compressed Air: Flow:5m³/min, Pressure: 5-7kg/cm²

Cable: All cable outside of machine to be supplied by buyer after installation

Working Process

Strip steel to coil

Uncoiler

End straightener

Flattener

Shear welder

Storage material unit

Forming, welding, cooling, accurate pipe diameter sizing

Accurate pipe length sizing and cutting

Inspection

Packaging

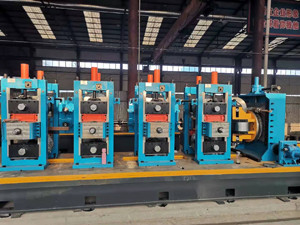

Tube Mill Machine Images
