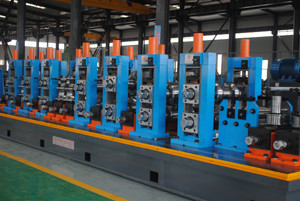

60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified

60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified
60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified

Large Image :  60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 90 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Machine Name: Tube Mill Machine Product: Round Pipe
Feature: Precision Material: Carbon Steel And Galvanized Steel
Other Pipe: Square Pipe Max Size: 60mm
Thickness: 3mm Length: 3-6m
Rollers: Not Include Model: 60
Key Words: Tube Mill Machine
High Light:

60mm High Frequency Welded Tube Mill

,

60mm Tube Mill Machine

,

BV High Frequency Welded Tube Mill

High Frequency Welded Round Tube Mill Machine By Steel Strip

Tube Mill Machine General Introduction



HG60 Automatic tube mill is designed to produce square pipe 30-60mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG60 production line adopts the double-radius hole style of design .


Automatic tube mill  Main Parameters and Specifications



(1)Material Specifications:

Standard

Internatioanl standard tube mill machine

Material

galvanized steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

90-190mm

Strip Thickness:

1-3mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤3T

(2)Pipe Specification

Pipe Diameter

round pipe :30-60mm



Length

3-6m

Pipe-cutting Precision

0-6mm

Forming Speed

max 90m/min for 2 mm thickness

(3)The buyer should self-supply

Work shop

60x12m, H>5m(crane to ground)

Power

Approx.3500KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.



Tube Mill Machine Working Process



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



Tube Mill Machine

60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 060mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 1



Our Factory for Tube Mill Machine


60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 2


Our Office
60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 3


Our Team
60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 4



Past Project for Tube Mill Machine
60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 5

Tube Mill Machine  and Management Certificate

60mm High Frequency Welded Tube Mill Machine CE ISO9000 BV certified 6
