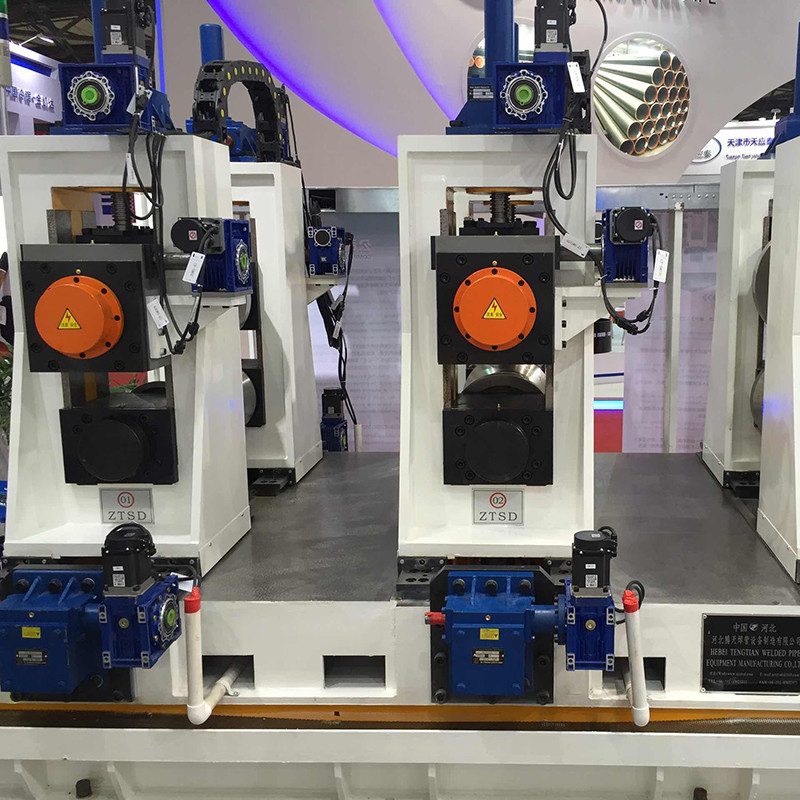

Automated 100mm Round Pipe Making Machine for Steel Tubes

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	127

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

127

Mill Name:

Automated Intelligent 100mm Round Pipe Making Machine Automatic Tube Mill

Feature:

Professional Customed

Other Pipe:

Round Pipe And Square Pipe

Max Size:

50 - 100mm

Thickness:

1 . 5 - 4 . 0 Mm

Length:

4 - 12 M

Rollers:

Include

Warranty:

One Year

Key Words:

Round Pipe Making Machine / Steel Pipe Forming Machine

Highlight:

High Light

Highlight:

Intelligent Round Pipe Making Machine

100mm Round Pipe Making Machine

Intelligent Steel Tube Forming Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Automated Intelligent 100mm Round Pipe Making Machine Automatic Tube Mill

Product Specifications

Attribute	Value
Mill Name	Automated Intelligent 100mm Round Pipe Making Machine Automatic Tube Mill
Feature	Professional Customed
Other pipe	Round pipe and square pipe
Max size	50 - 100mm
Thickness	1.5 - 4.0 mm
Length	4 - 12 m
Rollers	Include
Warranty	One year

Product Overview

The Automated Intelligent 100mm Round Pipe Making Machine is designed for producing high-quality round pipes (60-127mm diameter) and square pipes (50×50-100×100mm) with wall thickness ranging from 1.5 to 4.5mm. This advanced tube mill combines innovative design with precision engineering to deliver superior performance and reliability.

Key Features

High processing quality and assembly accuracy
Optimized roll pass design for precision welded steel pipes
Innovative design based on domestic and international standards
User-friendly operation and convenient maintenance
Leading manufacturing quality in the industry

Production Process

Coil Loading
Uncoiler
Shear and Welding
Horizontal Accumulator
Forming and Sizing
Cutting saw
Straight machine
Packing
Storage

Technical Specifications

Material Specifications

Material	Low carbon steel, galvanized and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip width	200 - 400 mm
Strip thickness	1.5 - 4.0 mm
I.D of Coils	Φ508 - 610 mm
O.D of Coils	φ2000 mm
Coil Weight	≤ 10T
