Heavy Round Tube Mill Machine 130mm Diameter 4mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	127

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

127

Production Name:

Heavy Round Tube Mill Machine For 130 Mm Diameter 4 Mm Thickness Straight Seam Welded Pipe Mill

Model:

127

Feature:

High Precision

Other Pipe:

Round ,square And Rectangular Pipe

Max Size:

50.8 ～ 139.8 Mm

Thickness:

1 . 0 - 4 . 0 Mm

Length:

4 M - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

Straight Seam Welded Pipe Mill

Highlight:

High Light

Highlight:

130Mm Round Tube Mill

4Mm Round Tube Mill

Straight Seam Welded Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Straight Seam Welded Round Tube Mill Machine 130Mm Diameter 4Mm Thickness

Product Specifications

Model: 127
Feature: High Precision
Pipe Types: Round, square and rectangular pipe
Max Size: 50.8～139.8 mm
Thickness Range: 1.0-4.0 mm
Length: 4 m - 6 m
Included Components: Rollers
Warranty: One year

Product Description

The Heavy Round Tube Mill Machine for 130mm diameter 4mm thickness straight seam welded pipe mill produces high-quality welded steel pipes using either high-frequency resistance welding or high-frequency induction welding processes. The forming process utilizes roll bending cold forming method for optimal results.

Key Specifications

Material Specifications	Details
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	159～440mm
Strip thickness	1.0～4.0mm
I.D of Coils	Φ508mm
O.D of Coils	Φ2000mm
Coil Weight	≤4T

Welded Pipe Specifications	Details
Round Pipe Diameter	Φ50.8～φ139.8mm
Square tube size	40x40-110x110mm
Pipe thickness	1.0-4.0mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	20-60m/min

Quality Assurance & Services

We provide comprehensive quality assurance covering any issues resulting from design and manufacturing for one year after successful installation and debugging. This includes replacement of parts and components (excluding human factors and vulnerable components).

Installation Support

Factory will dispatch 1-2 technical engineers for installation and testing
Buyer responsibilities include site preparation, equipment foundation, and providing installation tools/materials
Buyer must arrange power supply, water supply, and gas supply to equipment interface
Required utilities: Main power, air compressor (1.5 cubic meters/minutes), water source

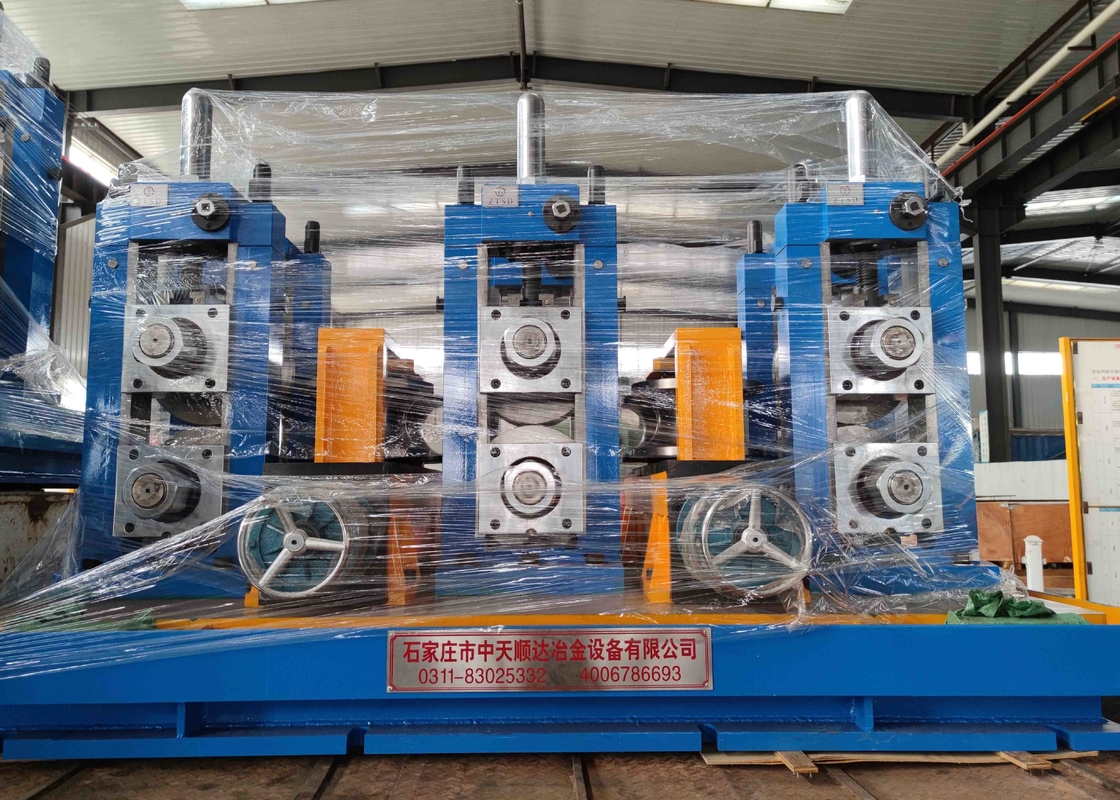

Product Images
