| Production Name: | Heavy Round Tube Mill For 130 Mm Diameter 4 Mm Thickness Straight Seam Welded Pipe Mill | Model: | 127 |
|---|---|---|---|
| Feature: | High Precision | Other Pipe: | Round ,square And Rectangular Pipe |
| Max Size: | 50.8 ～ 139.8 Mm | Thickness: | 1 . 0 - 4 . 0 Mm |
| Length: | 4 M - 6 M | Rollers: | Include |
| Warranty: | One Year | Key Words: | Straight Seam Welded Pipe Mill |
| High Light: | 130Mm Round Tube Mill,4Mm Round Tube Mill,Straight Seam Welded Tube Mill |
||

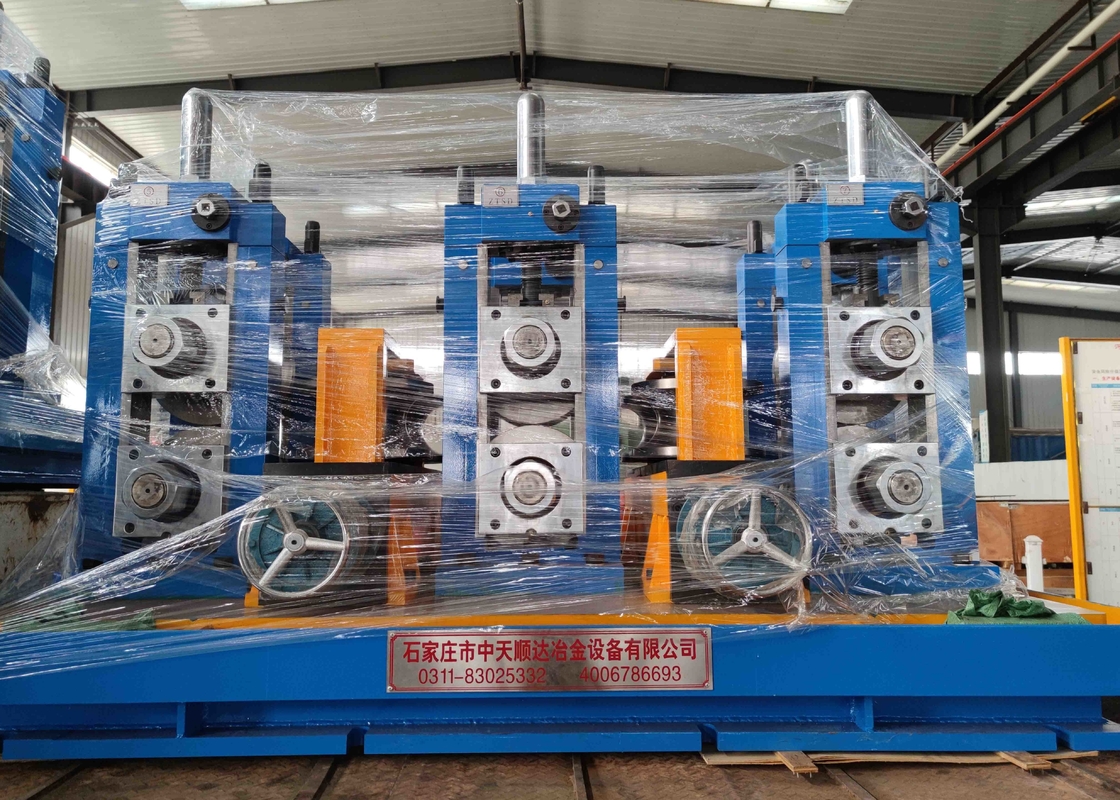

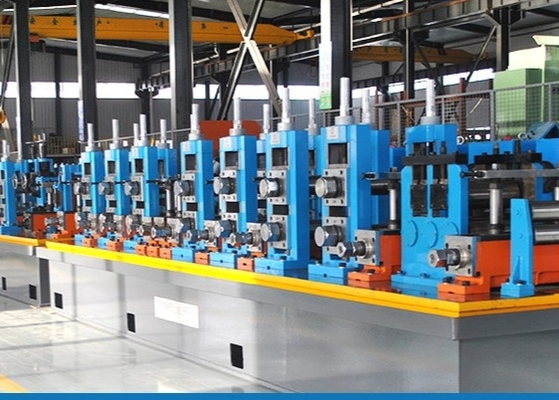

130 Mm Diameter 4 Mm Thickness Straight Seam Welded Pipe Mill can be divided into straight seam high-frequency resistance welded steel pipes and straight seam high-frequency induction welded steel pipes according to different high-frequency welding processes. The forming process generally adopts roll bending cold forming method.
It is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 50.8--139.8mm Pipe thickness: 1.0-4.0mm
(1)Material Specifications:
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 159～440mm |
| strip thickness | 1.0～4.0mm |

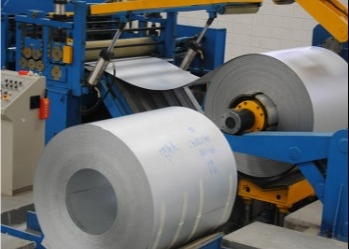

| I.D of Coils | Φ508mm |
| O.D of Coils | Φ2000mm |
| Coil Weight | ≤4T |
(2)Welded Pipe Specification:
| Round Pipe Diameter | Φ50.8～φ139.8mm |
| Square tube size | 40x40-110x110mm |
| pipe thickness | 1.0-4.0mm |
| Finish pipe length | 4-6m |
| Cut length accuracy | ±2mm |
| Forming speed | 20-60m/min |
Quality Assurance:we shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !
Debugging:
1) Factory will send 1-2 technical engineers for installation and testing operation
2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.
3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector
4) Buyer Preparation Notes
Machinery device takes the location (length* width)
Power supply: Main power to equipment control bench, unit position
Air feed: Air compressor (1.5 cubic meters/minutes
Water supply: Water source to machine station
