High Frequency Welded Tube Mill Machine 12-63mm Diameter 120M/Min

Name: High Frequency Welded Tube Mill Machine 12-63mm Diameter 120M/Min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG50

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG50

Product Name:

High Frequency Welded Pipelined Max Speed 120 M / Min Diameter 12-63 Mm Tube Mill Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

600KW

Speed:

120m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

12-63 Mm

Warranty:

1 Year

Keywords:

Tube Mill Machine

Highlight:

High Light

Highlight:

120M/Min High Frequency Welded Tube Mill

63Mm High Frequency Welded Tube Mill

120M/Min high frequency welded pipe mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Max Speed 120M/Min High Frequency Welded Tube Mill Machine Diameter 12-63Mm

Product Specifications

Product Name	High frequency welded pipelined Max Speed 120 M / Min Diameter 12-63 mm Tube Mill Machine
After-sales Service	Engineers available to service machinery overseas
Pipe Material	Carbon Steel
Voltage	380V
Power	600KW
Speed	120m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	12-63 mm
Warranty	1 year

Product Description

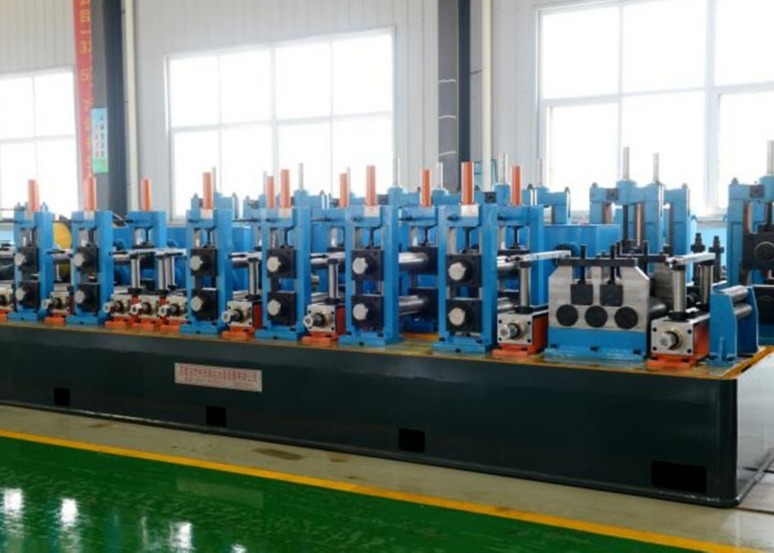

The HG50 High-Frequency Welded Pipe Mill Line is engineered to produce precision welded pipes with diameters ranging from 12-63mm and wall thicknesses of 0.5-2.0mm, including square, rectangular, and deformed pipe variants. Featuring advanced roll pass design, this production line delivers superior quality welded steel pipes with exceptional machining quality and high-precision assembly.

Tube Mill Machine Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Hydrostatic testing → End facer → Straightener → Packing → Storage

Our Service

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize production output and reduce costs
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
