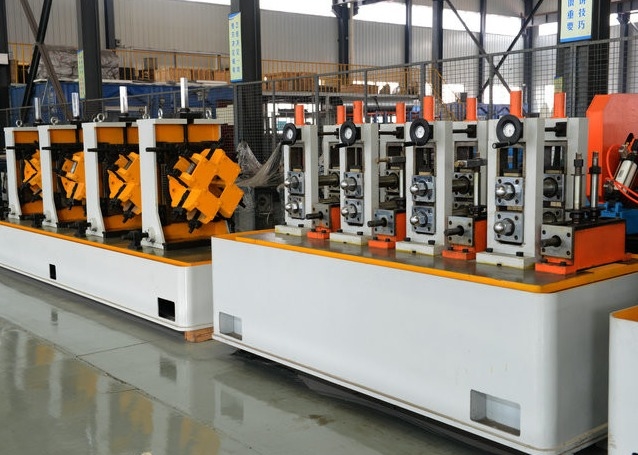

76-114mm Automatic Tube Mill for Round Square Rectangular Pipes

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	114

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

114

Name:

Large Diameter 76-114mm Automatic Tube Milll High Accuracy Full Automatic

Model:

114

Feature:

High Precision

Other Pipe:

Round,square Pipe And Rectangular Pipe

Max Size:

76 - 114 Mm

Thickness:

1 . 5 - 4 . 0 Mm

Cutting Length:

4 - 6 M

Warranty:

One Year

Key Words:

Full Automatic Tube Mill / Tube Rolling Mill

Highlight:

High Light

Highlight:

Large Diameter Tube Rolling Mill

114mm Tube Rolling Mill

Tube Rolling Mill High Accuracy

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Large Diameter 76-114mm Automatic Tube Mill High Accuracy Full Automatic

Product Specifications

Attribute	Value
Model	114
Feature	High precision
Pipe Types	Round, square pipe and rectangular pipe
Diameter Range	76 - 114 mm
Thickness	1.5 - 4.0 mm
Cutting Length	4 - 6 m
Warranty	One year

Product Description

The Large Diameter 76-114mm Automatic Tube Mill is designed to produce high precision welded pipes with diameters ranging from φ76 to φ114.3mm and wall thickness of 1.5-4.0mm, including same-size square pipes. Utilizing advanced roll pass design, this production line delivers superior quality welded steel pipes with high precision assembly.

Technical Specifications

Parameter	Specification
Pipe Material	Low carbon steel and low alloy constructional steel
Coil OD	φ1000～φ1600 mm
Coil ID	φ480～φ510 mm
Strip Width	160～320 mm
Strip Thickness	1.5～4.0 mm
Strip Weight	≤5 T
Welding Thickness	1.5-4.0 mm
Cutting Precision	0～3 mm
Forming Speed	20-60 m/min

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Quality Assurance & Services

Produces high-quality building materials pipes for construction, drainage, and energy supply applications
Customizable carbon steel pipe diameters from 25-606mm with wall thickness of 0.5-25mm
Custom machine configurations available with strip widths from 100mm to 1000mm
Comprehensive operation manuals and training videos provided
On-site technician support available for installation and training (additional costs apply)
12-month warranty covering parts and components under normal operating conditions
