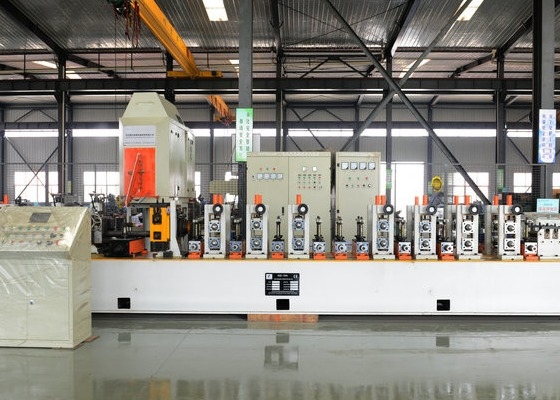

100x100mm High Precision Automatic Tube Mill with Rollers

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	127

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

127

Mill Name:

Save Roller Full Automatic Max 100 X 100 Mm High Precision Square Tube Mill

Feature:

High Precision

Other Pipe:

Round Pipe And Square Pipe

Max Size:

30 X 30 - 100 X 100 Mm

Thickness:

1 . 0 - 3 . 0 Mm

Length:

4 - 12 M

Rollers:

Include

Warranty:

One Year

Key Words:

High Precision Square Tube Mill

Highlight:

High Light

Highlight:

100Mm high precision tube mill

Tube Mill Machine Include Rollers

Fully Automatic High Precision Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

100X100Mm High Precision Fully Automatic Tube Mill Machine Include Rollers

Product Specifications

Mill Name	Save Roller Full Automatic Max 100 X 100 Mm High Precision Square Tube Mill
Feature	High precision
Pipe Types	Round pipe and square pipe
Max Size	30 x 30 - 100 x 100 mm
Thickness	1.0 - 3.0 mm
Length	4 - 12 m
Rollers	Included
Warranty	One year

Product Overview

The 100 Automatic tube mill is engineered to produce high-quality square pipes ranging from 30x30mm to 100x100mm with thicknesses of 1-3mm. Featuring advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high-precision assembly.

Utilizes a single set of combined molds for multiple tube specifications
90% roller savings rate significantly reduces operational costs
Motor-driven automatic adjustment minimizes labor requirements
Quick roller adjustment capability reduces product changeover time
User-friendly operation with simple size input interface

Technical Specifications

Material Specifications

Standard	International standard tube mill machine
Material	Galvanized steel
Mechanical Properties	σb≤520Mpa, σs≤365MPa
Strip Width	120-400mm
Strip Thickness	1-3mm
Coil Dimensions	Inner: Φ508mm, Outer: Φ1300-2000mm
Coil Weight	≤3T
