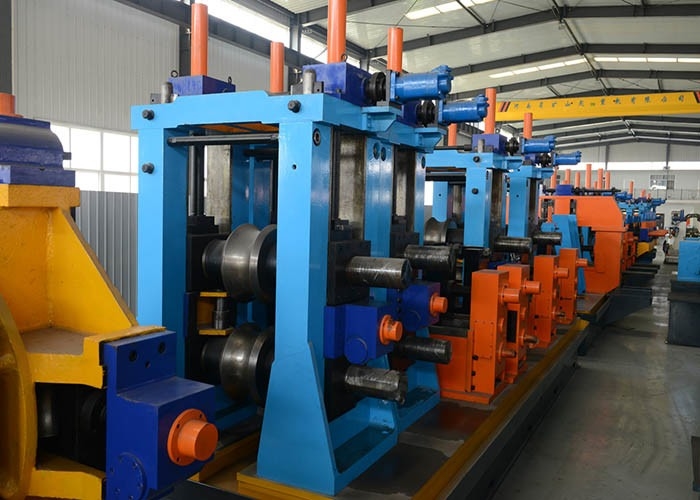

Blue Tube Mill Machine 60m/min 4.5mm Carbon Steel Pipes 76-153mm

Name: Blue Tube Mill Machine 60m/min 4.5mm Carbon Steel Pipes 76-153mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG153
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG153

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG153

Product Name:

Speed 10 - 60 M / Min Pipeline Thickness 4.5mm And Diameter 76-153mm Blue Color Tube Mill Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

400KW

Speed:

60 M / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

76-153mm

Warranty:

1 Year

Keywords:

Blue Color Tube Mill Machine

Highlight:

High Light

Highlight:

4.5mm Tube Mill Machine

4.5mm HF Tube Mill

60m/Min HF Tube Mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

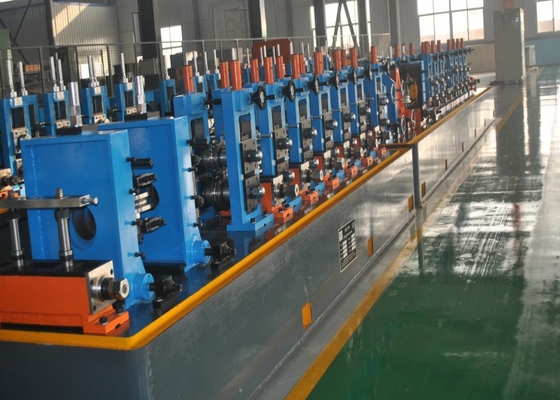

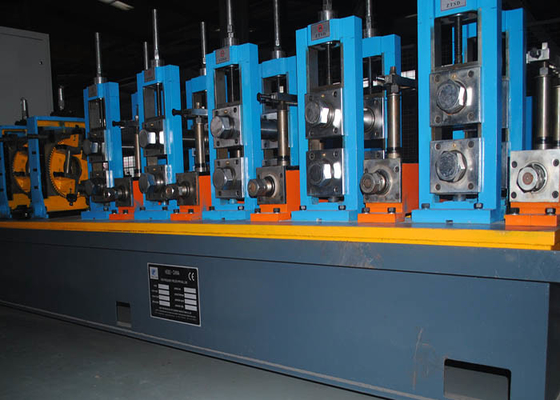

Speed 10-60m/Min Thickness 4.5mm HF Tube Mill Machine Blue Color

Product Specifications

Attribute	Value
Product name	Speed 10 - 60 m / min pipeline thickness 4.5mm and Diameter 76-153mm Blue Color Tube Mill Machine
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	400KW
Speed	60 m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	76-153mm
Warranty	1 year

Product Overview

The HG153 High-Frequency Welded Pipe Mill Line is designed to produce welded square pipes of 60*60-120*120mm in side length and 1.2～4.5mm in wall thickness as well as round, rectangular and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.

Tube Mill Machine Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → hydrostatic testing → End facer → Straightener → Packing → Storage

Our Comprehensive Services

1. On-site engineer support for installation and operator training

2. One year quality guarantee with lifetime repair support

3. Complete pre-sales and after-sales service package

4. Extended engineer support available (several months to 1 year)

5. Full project design services for stainless steel/carbon steel pipe production

6. Comprehensive loading and shipping responsibility
