Blue Carbon Steel Tube Mill Machine 33.7-60.3mm Diameter 70m/min

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

Production Name:

Color Blue Machine Carbon Steel Diameter 33.7-60.3mm Speed 70m / Min Tube Mill Machine

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Forming Speed:

Max.80m/min

Key Word:

High Frequency Welded Pipe Mill For Round

Highlight:

High Light

Highlight:

60.3mm Carbon Steel Tube Mill

Tube Mill Machine 70m/min

60.3mm Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

4 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

Blue Diameter 33.7-60.3mm Carbon Steel Tube Mill Machine Speed 70m/min

Product Specifications

Production Name	Color Blue Machine Carbon Steel Diameter 33.7-60.3mm Speed 70m / min Tube Mill Machine
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max.Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Forming Speed	Max.80m/min
Keyword	High Frequency Welded Pipe Mill For Round

Tube Mill Machine Model

HG89 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of round pipe 33.78～60.3 mm and 1.5-4.0 mm in thickness, and same size of square pipe. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m2)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Low Carbon Steel Low Alloy Constructional Steel 63mm Dia High Frequency Welded Pipe Mill

This machine is designed to produce welded steel pipes, including round pipe, square pipe and deformed pipe. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Main Parameters and Specifications:

Material Specifications:

Standard	Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	δs≤345Mpa δb≤610Mpa
Strip Width	50-200mm
Strip Thickness	1.5-4.0mm
Inner Diameter of Coils	φ480～φ570mm
Outer Diameter of Coils	φ1000～φ1800mm
Coil Weight	≤4.0T

Pipe Specification

Pipe Diameter	Square pipe:15x15-50x50mm round pipe 17.2-60.3mm Thickness:1.5-4.0mm
Length	6-12m
Pipe-cutting Precision	0-6mm
Forming Speed	10-50m/min

The buyer should self-supply

Work shop	60x6m, H＞5m(crane to ground)
Power	Approx.1212KW 380V/50Hz/3phases
Circulation Cooling Water(whole system)	Flow:20T/h～30 T/h Pool Volume:30m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Others	Seller will supply list

Working Process

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

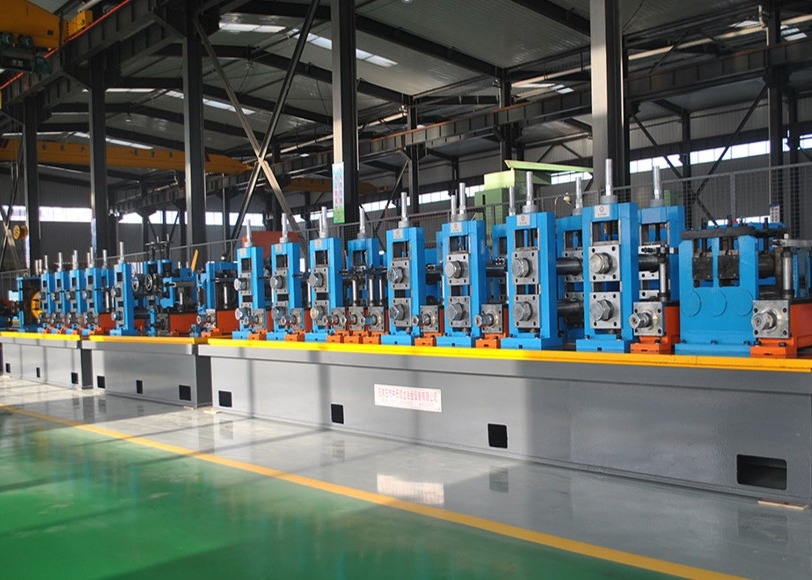

Product Images

Our Service

We will send the engineer for the installation and training your workers how to operate this machine in correct way.
Warranty Team: One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
We supply the pre-sell and after-sell service.
Pre-sell service: workshop design, and production output design
After-sell service: installation and training, and the skilled engineer for working.
We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
