Product Details:
Payment & Shipping Terms:
|
| Production Name: | Color Blue Machine Carbon Steel Diameter 33.7-60.3mm Speed 70m / Min Tube Mill Machine | Pipe Diameter: | 21 - 63mm |
|---|---|---|---|
| Product Speed: | Max 50m/min | Max.Thickness For Square Pipe: | 0.8-3.0mm |
| Certification: | CE ISO | Forming Speed: | Max.80m/min |
| Key Word: | High Frequency Welded Pipe Mill For Round | ||
| High Light: | 60.3mm Carbon Steel Tube Mill,Tube Mill Machine 70m/min,60.3mm Tube Mill Machine |
||

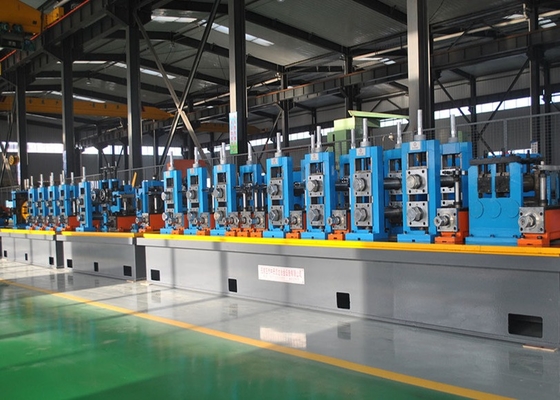

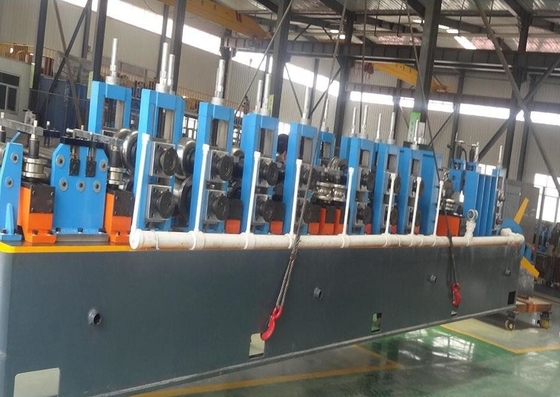

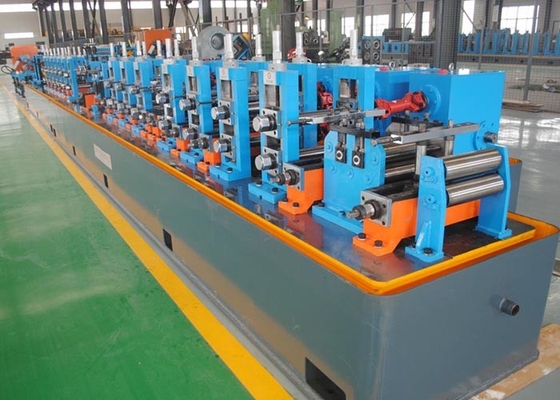

HG89 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of round pipe33.78～60.3 mm and 1.5-4.0 mm in thickness , and same size of square pipe. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
| Model | Diameter(mm) | Thickness(mm) | Speed(m/min) | Main power(kw) | HF welder(KW) | Area(m2) |
| HG32 | 10-32 | 0.4-1.5 | 30-100 | 250 | 100 | 12x100 |
| HG50 | 12-50 | 0.6-2.5 | 30-90 | 300 | 150 | 12x100 |
| HG76 | 12-76 | 1-3 | 30-90 | 320 | 200 | 12x100 |
| HG89 | 32-89 | 1-4 | 30-80 | 350 | 300 | 12x100 |
| HG114 | 45-114 | 1.5-5.0 | 30-60 | 400 | 300 | 12x100 |
| HG165 | 60-165 | 3-7 | 30-50 | 600 | 400 | 12x100 |
| HG219 | 114-219 | 4-8 | 20-40 | 800 | 500 | 15x150 |
| HG273 | 114-273 | 4-10 | 15-30 | 1000 | 600 | 18x160 |
| HG325 | 165-325 | 4-10 | 10-30 | 1200 | 600 | 12x100 |
| HG426 | 165-426 | 4-12.7 | 8-25 | 1400 | 800 | 12x100 |
| HG508 | 219-508 | 4-16 | 8-20 | 2000 | 1000 | 12x100 |
Low Carbon Steel Low Alloy Constructional Steel 63mm Dia High Frequency Welded Pipe Mill General Introduction
1.Machine General Introduction
it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
2.Main Parameters and Specifications:
| (1)Material Specifications: | |
| Standard | Conforming to the YB189-64 standard |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | δs≤345Mpa δb≤610Mpa |
| Strip Width | 50-200mm |
| Strip Thickness: | 1.5-4.0mm |
| Inner Diameter of Coils | φ480～φ570mm |
| Outer Diameter of Coils | φ1000～φ1800mm |
| Coil Weight | ≤4.0T |
| (2)Pipe Specification | |
| Pipe Diameter |
Square pipe:15x15-50x50mm round pipe 17.2-60.3mm Thickness:1.5-4.0mm |
| Length | 6-12m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | 10-50m/min |
| (3)The buyer should self-supply | |
| Work shop | 60x6m, H＞5m(crane to ground) |
| Power | Approx.1212KW 380V/50Hz/3phases |
| Circulation Cooling Water(whole system) |
Flow:20T/h～30 T/h Pool Volume:30m3 |
|
Compressed Air (whole system) |
Flow:5m3/min Pressure: 5-7kg/ cm2 |
| Others | Seller will supply list |
Our Service
1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
