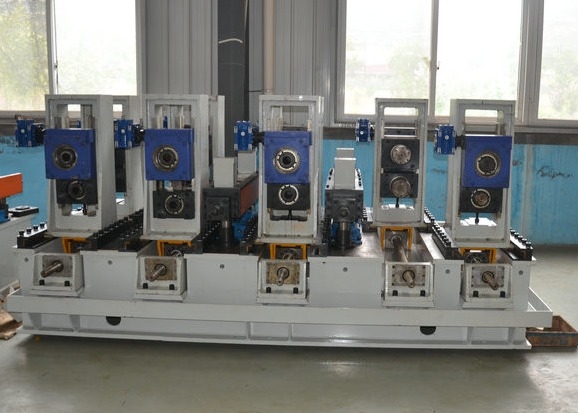

Automatic Tube Mill for 19-76mm Pipes with 30-120m/min Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	76

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill

Application:

Tube Production

Voltage:

380V/220V

Pipe Diameter:

19-76mm

Thickness:

0.8-3.0mm

Speed:

30-120m/min

Key Words:

Pipes Making Process Steel Line

Highlight:

High Light

Highlight:

Construction Milling Saw Automatic Tube Mill

76mm Pipe Making equipment

19mm Automatic Tube Mill

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 Sets/Year

Product Description

Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill

Product Specifications

Attribute	Value
Production Name	Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill
Application	Tube Production
Voltage	380V/220V
Pipe diameter	19-76mm
Thickness	0.8-3.0mm
Speed	30-120m/min

Product Overview

This automatic tube mill is specially designed for producing high-frequency straight seam welded pipes with diameters of Φ19.05-Φ76.2mm and wall thickness of 0.8-3.0mm, including corresponding square pipes and special-shaped pipes (δ≤2.5mm). The complete equipment setup ranges from uncoiler to fixed length cutting saw, with adjustable rolling speed within the suitable range for pipe diameter and wall thickness.

Processing Dimensions

Outer Diameter: Φ19.05-Φ76.2mm
Square pipe size: 18x18~60x60mm
Rectangle pipe size: 15x20~40x80mm
Wall thickness: 0.8-3.0mm (square pipe and special-shaped pipe δ≤2.5mm)
Length: 4-8m
Milling speed: 30-80M/min

Production Process Flow

raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
