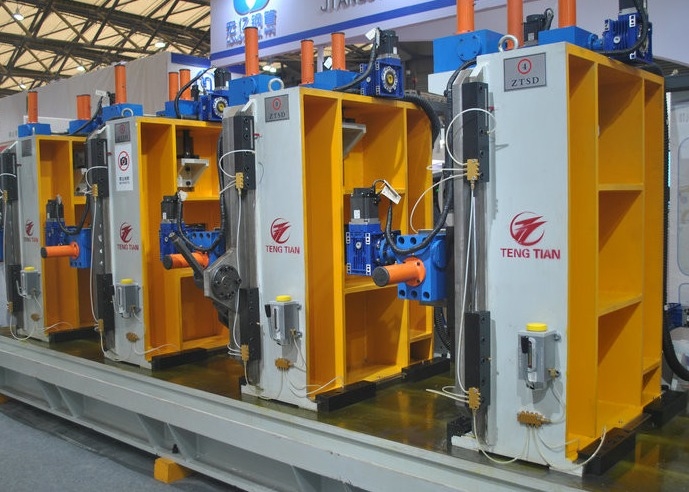

High Frequency Automatic Tube Mill 325-530mm 25m/min Carbon Steel

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001,
Model Number:	530

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001,

Model Number:

530

Production Name:

Regulation Speed 25m/Min High Frequency Automatic Tube Mill Auto Produce

Pipe Diameter:

325mm-530mm

Product Speed:

Max 25m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Pipe Thickness:

4.0-9.0mm

After-sales Service Provided:

Commissioning And Training

Voltage:

380V

Key Word:

Welded Steel Pipe Auto Produce

Highlight:

High Light

Highlight:

Welded Pipe Mill Auto Produce

25m/Min High Frequency Welded Pipe Mill

welded tube mill Auto Produce

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

5 months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

50 set per year

Product Description

Regulation Speed 25m/Min High Frequency Automatic Tube Mill Auto Produce

Attribute	Value
Production Name	Regulation Speed 25m/Min High Frequency Automatic Tube Mill Auto Produce
Pipe Diameter	325mm-530mm
Product Speed	Max 25m/min
Material	Carbon steel, stainless steel, low alloy steel
Cutting Saw	Friction Saw Cutting
Pipe Thickness	4.0-9.0mm
After-sales Service	Commissioning and training
Voltage	380V

Product Overview

The Regulation Speed 25m/Min High Frequency Automatic Tube Mill Auto Produce utilizes the most economical and reasonable molding process to continuously and smoothly bend materials into seamed tubes. Its specially designed roll structure and adjustment system adapt to all product sizes and specifications without requiring roll replacement.

Key Features

Closed-hole type frame with three-frame four-high rolling mill design
Hydraulic-driven quick change system for specifications (completed in minutes)
Special replacement frame design for efficient roll changes

Technical Specifications

Material Specifications

Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤520Mpa, σs≤340MPa
Strip Width	1020～1665mm
Strip Thickness	4～9mm
Steel Strip Coil	Inner Diameter: φ508～φ760mm Outer Diameter: φ1500～φ2100mm Coil Weight: ≤30T
