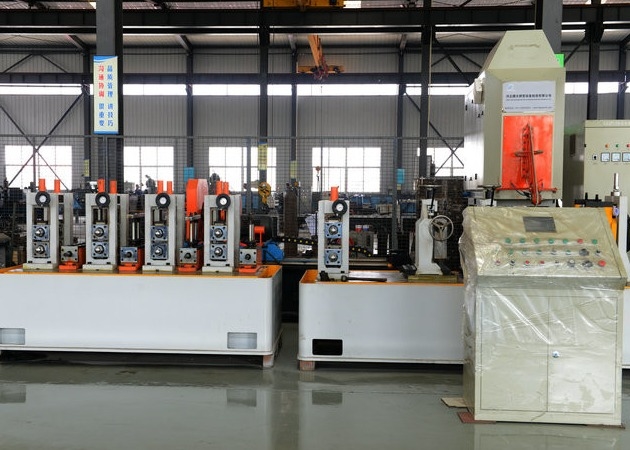

89mm Automatic Tube Mill for Round Pipe 45-102mm High Frequency Welding

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	89

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

Mill Name:

Full Auto Industry 89Mm Automatic Tube Mill High Frequency Welding For Square Pipe

Forming Method:

FFX Forming Technology

Running Speed:

Max. 60 M / Min

Pipe Shape:

Round

Pipe Diameter:

45 - 102 Mm

Max.Thickness For Round Pipe:

1 . 0 - 4 . 0 Mm

Welding Type:

High Frequency Welding

Key Words:

Industry Welded Steel Pipe Forming Mill

Highlight:

High Light

Highlight:

89Mm Tube Forming Mill

Tube Forming Mill High Frequency Welding

89Mm welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

4 months

Payment Terms:

L/C,T/T

Supply Ability:

5 Sets/Year

Product Description

Full Auto Industry 89Mm Automatic Tube Mill High Frequency Welding for Square Pipe

Product Specifications

Attribute	Value
Mill Name	Full Auto Industry 89Mm Automatic Tube Mill High Frequency Welding for Square Pipe
Forming Method	FFX Forming Technology
Running speed	Max. 60 m / min
Pipe shape	Round
Pipe Diameter	45 - 102 mm
Max.Thickness for Round Pipe	1.0 - 4.0 mm
Welding Type	High Frequency Welding

Product Overview

The Full Auto Industry 89Mm Automatic Tube Mill features a combined mold system that produces tubes of different specifications with simple adjustments, eliminating the need for mold changes. This innovative design achieves a roller savings rate above 90%, significantly reducing costs while improving efficiency.

Key benefits include motorized automatic adjustment that reduces labor requirements, lowers labor costs, decreases worker intensity, and improves working conditions.

Production Capabilities

Round pipe size: 45-102 mm
Square pipe size: 40×40-60×80 mm
Pipe thickness: 1.0-4.0 mm

This production line incorporates domestic and international equipment technologies with innovative design elements tailored to China's manufacturing environment. The machine delivers high machining quality and assembly precision, producing electric welded steel pipes with exceptional accuracy.

Production Process

Available Models

Model	Side length Range	Thickness	Production speed (m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	6 x 6 ~ 16 x 16 mm	0.3 -1 mm	30 - 120	55	7 × 50
HG32	9 x 9 ~ 25 x 25 mm	0.3 - 2.0 mm	30 - 120	75	7 × 50
HG50	12 x 12 ~ 40 x 40 mm	0.8 - 2.5 mm	30 - 110	110	7 × 60
HG60	15 x 15 ~ 47 x 47 mm	0.8 - 3 mm	30 - 100	132	7 × 65
HG76	9 x 9 ~ 60 x 60 mm	1 - 3 mm	30 - 100	320	8 × 80
HG89	25 x 25 ~ 70 x 70 mm	1 - 4 mm	30 - 80	350	8 × 80
HG114	35 x 35 ~ 89 x 89 mm	1.5 - 5.0 mm	30 - 60	400	10 × 100
HG165	47 x 47 ~ 129 x 129 mm	3 - 7 mm	30 - 50	600	10 × 110
HG219	89 x 89 ~ 172 x 172 mm	4 - 8 mm	20 - 40	800	12 × 150
HG273	89 x 89 ~ 214 x 214 mm	4 - 10 mm	15 - 30	1000	18 × 160
HG325	129 x 129 ~ 255 x 255 mm	4 - 12 mm	10 - 30	1200	18 ×180
HG426	129 x 129 ~ 335 x 335 mm	4 - 16 mm	8 - 25	1400	18 × 180
HG508	172 x 172 ~ 400 x 400 mm	4 - 20 mm	8 - 20	2000	21 × 180

Quality Assurance & Service

Our technical service team will provide on-site guidance for machine operation, debugging, and maintenance after installation. We offer comprehensive technical training for your equipment operators and maintenance personnel. The entire production line comes with a one-year warranty.

Exhibition Participation
