Automatic Tube Mill for 76.3mm-165.2mm Steel Pipes 60m/min

Name: Automatic Tube Mill for 76.3mm-165.2mm Steel Pipes 60m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165.2
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG165.2

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG165.2

Mill Name:

Steel Pipeline Diameter 76.3mm-165.2mm Automatic Tube Mil Speed 60m/Min

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

400KW

Speed:

60 M / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

76.3mm-165.2mm

Warranty:

1 Year

Keywords:

Green Color Automatic Tube Mill

Highlight:

High Light

Highlight:

165.2mm Automatic Tube Mill

76.3mm Automatic pipe Mill

Automatic Tube Mill 60m/Min

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

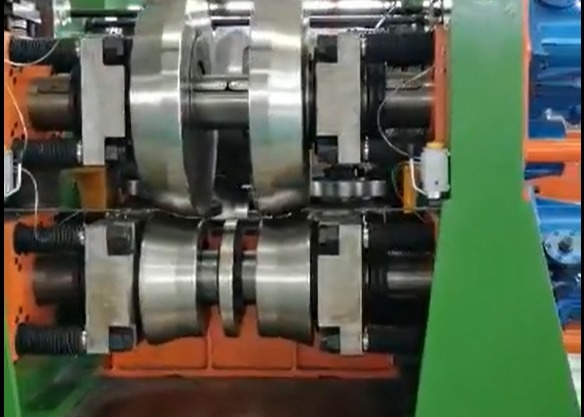

Steel Pipeline Diameter 76.3mm-165.2mm Automatic Tube Mill

Key Specifications

Attribute	Value
Mill Name	Steel Pipeline Diameter 76.3mm-165.2mm Automatic Tube Mill
After-sales Service	Engineers available to service machinery overseas
Pipe Material	Carbon Steel
Voltage	380V
Power	400KW
Speed	60 m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	76.3mm-165.2mm
Warranty	1 year

Product Overview

This automatic tube mill is designed for producing structural pipes with the following specifications:

Round pipe: 76.3-165.2mm diameter with 2.0-9.0mm thickness
Square pipe: 75x75-150x150mm with 2.0-9.0mm thickness
Rectangular pipe: 100x50-200x100mm with 2.0-9.0mm thickness

The production line incorporates innovative design elements from domestic and international equipment, featuring full PC/computer control with advanced technology for convenient operation and maintenance. This system meets international standards and represents leading domestic technology.

Automatic Tube Mill Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Comprehensive Service

1. Installation & Training: We provide engineers for machine installation and worker training.

2. Warranty Team: One year quality guarantee with life guarantee repair. Free repair parts during warranty (excluding human error). After warranty, only spare parts cost is charged.

3. Pre-sell & After-sell Service: Includes workshop design, production output design, installation, training, and skilled engineer support.

4. Extended Engineering Support: We can provide engineers for several months to a year to help improve output, reduce waste, and decrease costs.

5. Project Design: Complete project design for stainless steel/carbon steel pipe production.

6. Shipping: We handle all loading and shipping arrangements.
