Carbon Steel Tube Mill Machine 60-140mm Round Pipe CE ISO9001

Name: Carbon Steel Tube Mill Machine 60-140mm Round Pipe CE ISO9001
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei,CHINA
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG140

Detail Information

Place of Origin:

Hebei,CHINA

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG140

Production Name:

Carbon Steel Round PipeTube Mill Machine With CE ISO 9001 Certification

Material:

HRC,CRC,Galvanised Steel

Pipe Size:

60-140mm

Pipe Thickness:

2.0-6.0mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Roller Materoal:

Cr12/SKD11

Key Words:

Tube Mill Machine

Highlight:

High Light

Highlight:

ISO9001 Round Tube Mill

140mm Round Tube Mill

140mm Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

150 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

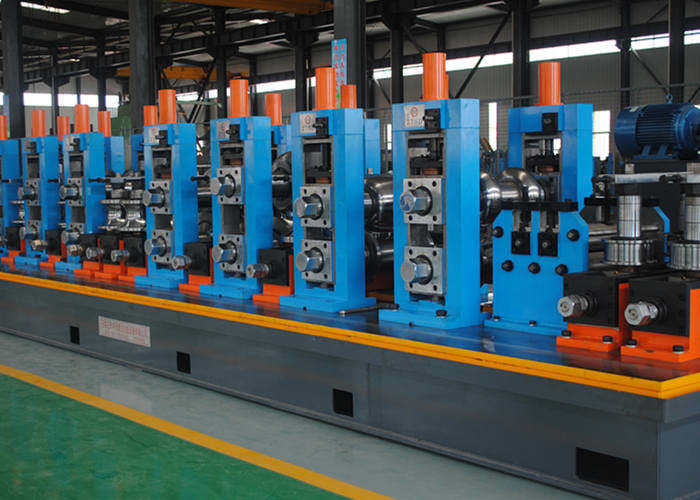

Carbon Steel 60-140mm Round Tube Mill Machine With CE ISO9001 Certification

Product Overview

This Carbon Steel Round Pipe/Tube Mill Machine with CE ISO 9001 Certification is designed for manufacturing welded steel pipes. Incorporating advanced pipe-making technology from domestic and international sources, it produces tubes of various sizes and shapes with precision.

Key Specifications

Material: HRC, CRC, Galvanized Steel

Pipe Size Range: 60-140mm

Pipe Thickness: 2.0-6.0mm

Welding Type: High Frequency Welding

Pipe Shapes: Round, Square, Rectangular

Roller Material: Cr12/SKD11

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤380Mpa, σs≤275MPa
Strip Width	180-420mm
Strip Thickness	2.0-6.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ2000mm
Coil Weight	≤5T

Welded Pipe Specifications

Round Tube Size	60-140mm
Pipe Thickness	2.0-6.0mm
Finish Pipe Length	4-8m
Cut Length Accuracy	±2mm
Forming Speed	20-80m/min

Workshop Requirements

8m wide, 120m long, with at least 6m clearance from ceiling rails to ground.

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
