Big Size 100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness

Name: Big Size 100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG254
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei,china
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG254

Detail Information

Place of Origin:

Hebei,china

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG254

Production Name:

Big Size Erw Tube Mill Machine 100-254mm Diameter 4.0-12.7mm Thickness

Material:

HRC,CRC

Pipe Diamete:

100-254 Mm

Pipe Thickness:

4.0-12.7mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Round,square,rectangular

Roller Materoal:

Cr12/SKD11

Key Words:

Tube Mill Machine

Highlight:

High Light

Highlight:

254mm Erw Tube Mill

254mm Tube Mill Machine

CRC Erw Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

180 work days/Year

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

30 Sets

Product Description

Big Size Erw Tube Mill Machine 100-254mm Diameter 4.0-12.7mm Thickness

Product Description:

Big Size Erw Tube Mill Machine 100-254mm Diameter 4.0-12.7mm Thickness is used to manufacture round/square welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.

Round pipe size: 100--254mm Pipe thickness: 4.0-12.7mm

square tube size:80x80-200x200mm, tube thickness:4.0-12mm

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
steel material: Q235/Q345
Mechanical properties:σb≤380Mpa,σs≤275MPa
strip width:320-800MM
strip thickness:4.0-12.7MM
I.D of Coils:Φ508mm
O.D of Coils:φ1800mm
Coil Weight:10TON

Welded Pipe Specification

Round Pipe Diameter:Φ100～φ254mm
square tube size:80X80-200X200MM
pipe thickness:4.0-12.7MM
Finish pipe length:6-12M
Forming speed:10-40M/MIN

workshop require

8m wide, 120m long, at least 6m high from Ceiling Rails to Ground.

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

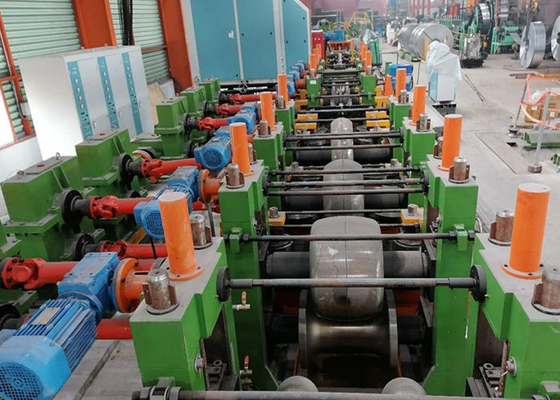

Big Size 100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness 0

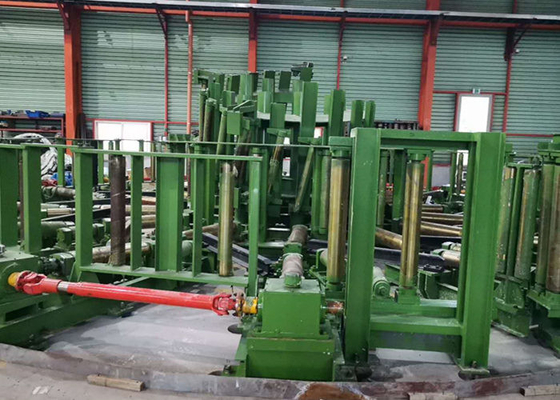

Big Size 100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness 1

Big Size 100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness 2

Big Size 100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness 3
