Home > products >
Tube Mill Machine
>

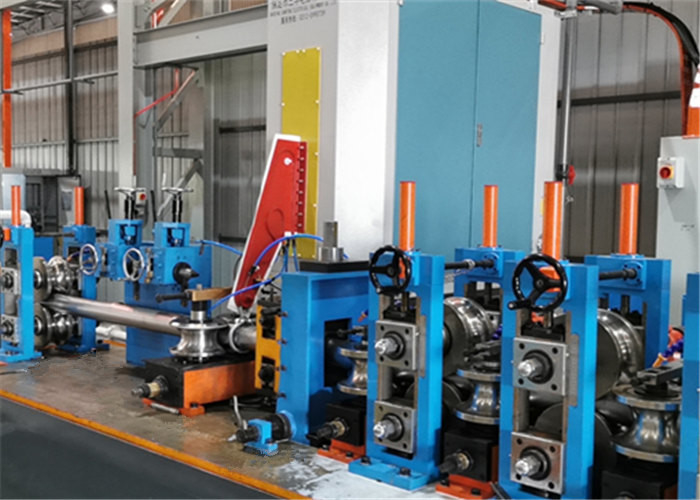

Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder
Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder
  • Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder
  • Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder

Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder

Product Details:
Place of Origin: Hebei,CHINA
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG65
Detail Information
Place of Origin:
Hebei,CHINA
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG65
Production Name:
Galvanized Carbon Steel Round Square Tube Mill Machine Export To Thailand
Material:
HRC,CRC,Galvanised Steel
Tube Size:
18-65 Mm
Tube Thickness:
0.8-3.0mm
Welding Type:
High Frequency Welder
Pipe Shape:
Round,square
Roller Materoal:
Cr12/SKD11
Key Words:
Tube Mill Machine
Highlight:

High Light

Highlight:

65mm Carbon Steel Tube Mill

,

65mm Tube Mill Machine

,

High frequency welder Tube Mill Machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
90 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets
Product Description
Galvanized 18-65mm Carbon Steel Tube Mill Machine With High Frequency Welder
Product Specifications
Attribute Value
Production Name Galvanized Carbon Steel Round Square Tube Mill Machine Export To Thailand
Material HRC, CRC, Galvanised Steel
Tube Size 18-65 mm
Tube Thickness 0.8-3.0mm
Welding Type High frequency welder
Pipe Shape Round, Square
Roller Material Cr12/SKD11
Product Description

The Galvanized Carbon Steel Round Square Tube Mill Machine is designed for manufacturing round and square welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, this machine produces tubes in various sizes and shapes with high precision. Capable of producing round tubes from 18-65mm in diameter with thickness ranging from 0.8-3.0mm, it can also manufacture LTZ special shape tubes.

Main Parameters and Specifications
  • Conforms to YB189-64 standard
  • Steel material: Q235/Q345
  • Mechanical properties: σb≤380Mpa, σs≤275MPa
  • Strip width: 47-180MM
  • Strip thickness: 0.8-3.0MM
  • I.D of Coils: Φ508mm
  • O.D of Coils: φ2000mm
  • Coil Weight: 3TON
Quality and Service Warranty

After machine delivery, our technical service personnel will visit your factory to provide guidance on operation, debugging, and maintenance. We offer comprehensive technical training for your equipment operation and maintenance personnel. The entire production line comes with a one-year warranty.

Working Process

Strip steel to coil → uncoiler → shear welder → storage material unit → forming, welding, cooling → accurate pipe diameter sizing → accurate pipe length sizing, cutting → inspection → packaging

Tube Mill Other Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Product Images
Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder 0 Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder 1 Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder 2 Galvanized Carbon Steel Tube Mill Machine 18-65mm High Frequency Welder 3
