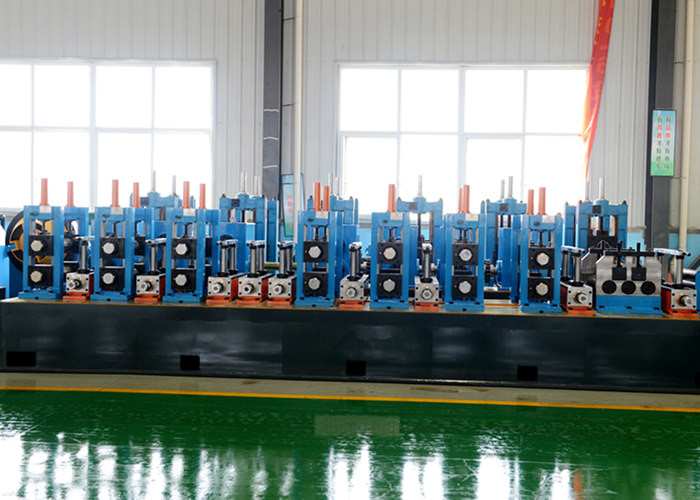

HG 165 Automatic Tube Mill for 110-273MM Gas Pipe Forming

Name: HG 165 Automatic Tube Mill for 110-273MM Gas Pipe Forming
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei,CHINA
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG165

Detail Information

Place of Origin:

Hebei,CHINA

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG165

Production Name:

Automatic HG 165 Round Gas Pipe Forming Machine Tube Mill

Material:

HRC,CRC,Galvanised Steel

Tube Size:

110-273MM

Tube Thickness:

6-12.7MM

Forming Type:

Roll Forming

Pipe Shape:

Square,rectangular,LTZ

Roller Materoal:

Cr12/SKD11

Key Words:

Automatic Tube Mill

Highlight:

High Light

Highlight:

273MM Automatic Tube Mill

110MM Pipe Forming Machine

Round Automatic Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

four month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

HG 165 110MM-273MM Round Automatic Tube Mill Gas Pipe Forming Machine

Product Specifications

Attribute	Value
Production Name	Automatic HG 165 Round Gas Pipe Forming Machine Tube Mill
Material	HRC, CRC, Galvanised Steel
Tube Size	110-273MM
Tube Thickness	6-12.7MM
Forming Type	Roll Forming
Pipe Shape	Square, Rectangular, LTZ
Roller Material	Cr12/SKD11

Product Description

The Automatic HG 165 Round Gas Pipe Forming Machine Tube Mill is designed to produce high-quality welded steel pipes including round, square, rectangular, and LTZ pipes. Featuring advanced roll pass design, this production line delivers precision machining and high-quality assembly.

Available in various configurations including normal, full automatic, semi-automatic, and high precision models to meet diverse customer requirements. Capable of producing pipes from 76mm to 165mm with thickness ranging from 3.0-8.0mm, including square and rectangular tubes. Custom designs available to meet specific customer needs.

Material Specifications

Conforms to YB189-64 standard
Steel material: Q235/Q345
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 240-520MM
Strip thickness: 3.0-8.0MM
I.D of Coils: Φ508mm
O.D of Coils: φ2000mm
Coil Weight: 7TON

Quality and Service Warranty

Our technical service personnel will provide on-site guidance for operation, debugging, and maintenance after machine installation. Includes comprehensive technical training for your operation and maintenance teams.

Full line warranty: 1 year

Working Process

Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Forming, welding, cooling → Pipe diameter sizing → Pipe length sizing and cutting → Inspection → Packaging

Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
