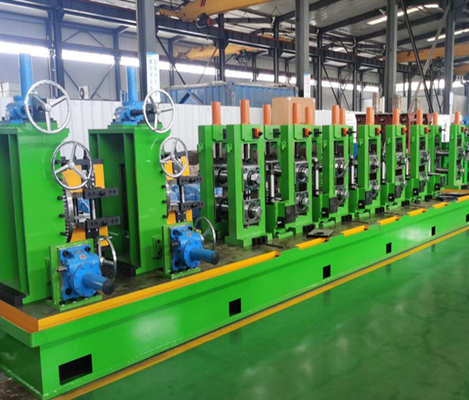

Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153

Large Image : Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG153

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$100000 to $1 million
Packaging Details:	Seaworthy packing
Delivery Time:	3 months
Supply Ability:	150 units a year

Contact Now

Detailed Product Description

Mill Name:	Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153	After-sales Service Provided:	On-Site Engineers
Pipe Material:	Carbon Steel	Voltage:	380V
Power(w):	1500KW	Speed:	10-60m / Min
Pipe Shape:	Round, Square & Rectangular	Round Pipe Diameter:	76mm-153mm
Warranty:	1 Year	Keywords:	Diameter 76mm-153mm Automatic Tube Mill
Highlight:	76mm High Frequency Tube Mill , 153mm High Frequency Tube Mill , 153mm hf welded tube mill

Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153

Product Information

Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153 is designed to produce welded square pipes of 60*60-120*120mm in Side length and 1.2～4.5mm in wall thickness as well as round, rectangular and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Model

Serial number	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	main engine(kw)	Power(kw)	area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage

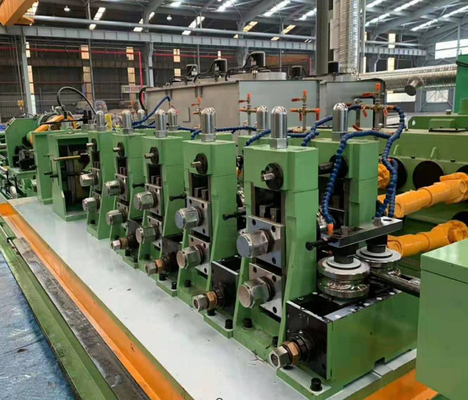

Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153 0

Our Service

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .

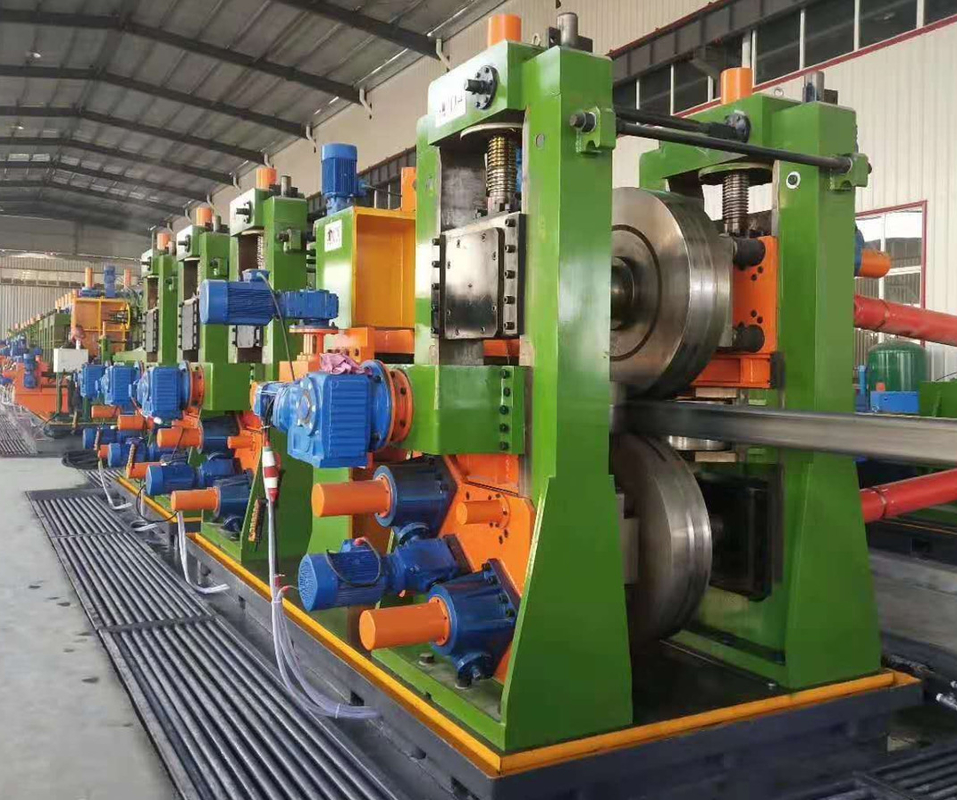

Green Large High Frequency Automatic Tube Mill Diameter 76mm-153mm Hg153 1
