600X600mm Square Tube Mill Machine for Direct Forming ISO9001

Name: 600X600mm Square Tube Mill Machine for Direct Forming ISO9001
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 600 X 600
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	600 X 600

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

600 X 600

Production Name:

Directly Forming Stable 600 X 600 Mm Square Tube Mill ISO9001 For Machinery

Model:

600X600

Feature:

Directly Forming And Stable

Other Pipe:

Round ,square And Rectangular Pipe

Max Size:

600X600 Mm

Thickness:

6 . 0 - 22 . 0 Mm

Length:

6 M - 20 M

Rollers:

Include

Warranty:

One Year

Key Words:

Directly Forming Stable 600 X 600 Mm Square Tube Mill ISO9001

Highlight:

High Light

Highlight:

Square Tube Mill ISO9001

600X600Mm Square Tube Mill

600X600Mm Tube Mill Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

120 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

Directly Forming Stable 400X400mm Square Tube Mill Machine ISO9001

Product Specifications

Attribute	Value
Model	600X600
Feature	Directly Forming and Stable
Pipe Types	Round, square and rectangular pipe
Max Size	600X600 mm
Thickness	6.0 - 22.0 mm
Length	6 m - 20 m
Rollers	Included
Warranty	One year

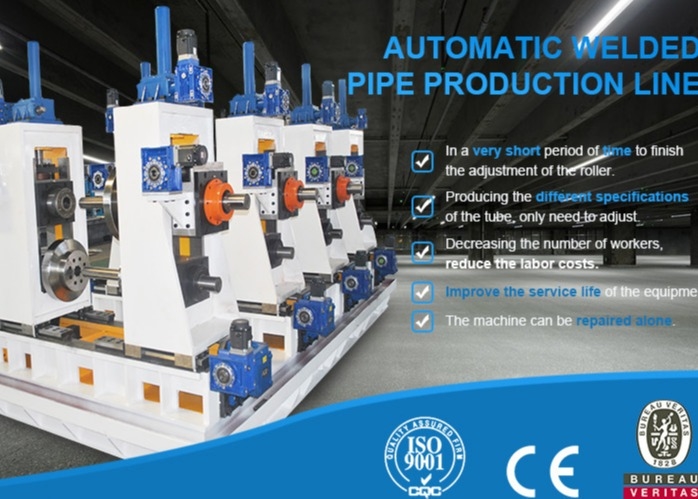

Product Overview

This square tube mill is designed for opening, leveling, forming, welding, sizing and shaping of strip coils with plate thickness δ=6-22mm and plate width B=1000-2400mm. It processes materials like Q235 and Q345 into square tubes (250×250mm-600×600mm), rectangular tubes (250×300mm-400×600mm), and other special-shaped structural tubes.

Material Specifications:

Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤380Mpa, σs≤275MPa
Strip width: 1000～2400 mm
Strip thickness: 6.0～22.0mm
Coil I.D: 610-760mm
Coil O.D: 1300-2000mm
Coil Weight: ≤35T

Welded Pipe Specifications:

Round Pipe Diameter: Φ250～φ600mm
Square tube size: 250X250-600x600mm
Pipe thickness: 6.0-22.0mm
Finish pipe length: 6 - 22 m
Cut length accuracy: ±2mm
Forming speed: 20m/min

Production Process Flow

Coil preparation

→ Coiling

→ Uncoiling

→ Head removal

→ Leveling

→ Cutting butt welding

→ Looper storage

→ Vertical roller alignment

→ Delivery

→ Forming (13 frames)

→ High frequency welding

→ Five rollers extrusion

→ External burr removal

→ Smoothing roller

→ Water cooling device

→ Sizing machine

→ Saw cutting

→ Roller table after sawing

→ Steel pipe conveying

→ Collecting and packing
