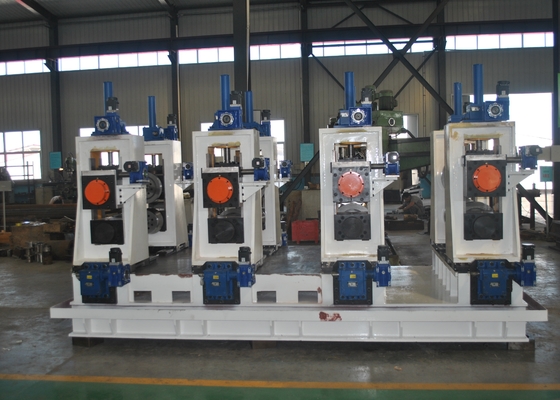

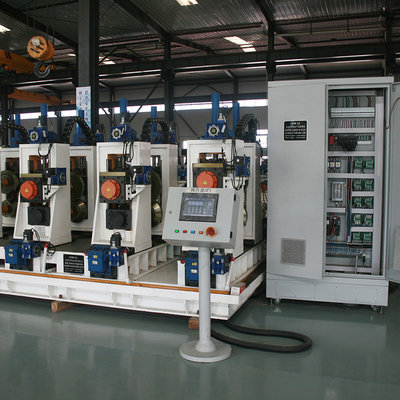

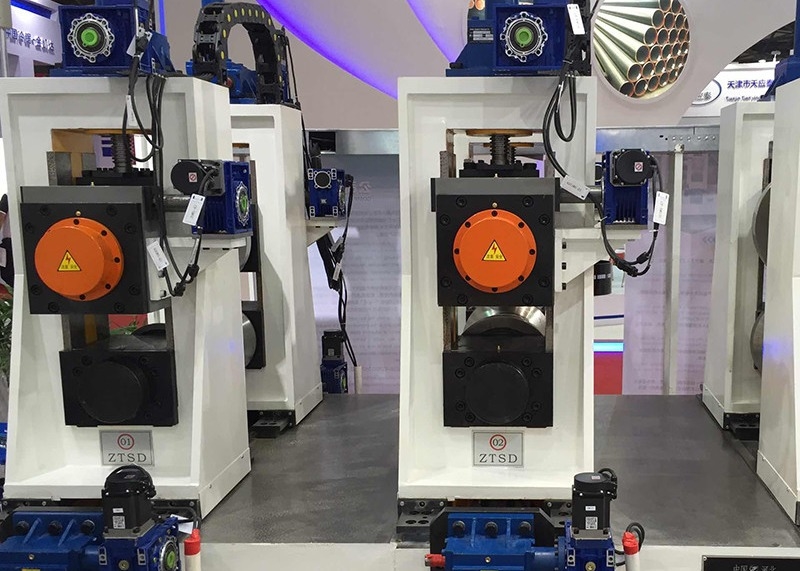

Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance

Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance
Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance

Large Image :  Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 20X20-75X75mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100000 to $1 million
Packaging Details: standard export package
Delivery Time: 120 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set/year
Contact Now
Detailed Product Description
Production Name: Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance Feature: Automatic And White
Other Pipe: Round Pipe And Square Pipe Max Size: 25 X 25 - 75 X 75 Mm
Thickness: 1 . 0 - 4 . 0 Mm Length: 6 - 12 M
Rollers: Include Warranty: One Year
Key Words: Industrial Automatic Square Pipe Mill White Color
Highlight:

75X75mm Square Pipe Mill

,

75X75mm Industrial Pipe Mill

,

Square Pipe Mill High Performance

Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance



1. Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance



65 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.



Square pipe size: 20X20-75X75mm       Rectangular pipe size:20X25-50X100mm       Pipe thickness: 1.0-4.0mm





2.Industrial Automatic 20X20-75X75mm Square Pipe Mill Main Parameters and Specifications



⑴ Material Specifications:

Material low carbon steel galvanize and crabon steel tube
Mechanical properties

σb≤520Mpa,σs≤365MPa
strip width 80 - 300 mm
strip thickness 1  . 0  - 4 . 0  mm
I.D of Coils 508 mm
O.D of Coils 1800 mm
Coil Weight ≤ 3.5 T

⑵ Welded Pipe Specification

Square Pipe Diameter 20x20-75x75mm
pipe thickness 1 . 0 -  4 . 0  mm
Finish pipe length 6 - 12 m
Cut length accuracy ± 2 mm
Forming speed 40 - 100 m/min



⑶ workshop require : 7 m X 70 m ,at least 5m high



Notice:You can modify it according to the actual length of the workshop



3. Supplier offered

①equipment debugging and assist the buyer to install the equipment.

②Provide technical training.

③Provide complete after-sales service and permanent technical advice.

④Provide homemade and spare parts for equipment.

Installation and debugging

①The buyer shall install the equipment by itself and the supplier shall assist in the installation.

②The supplier provides a complete set of equipment installation dimensions and external wiring requirements.

③The supplier shall be responsible for the commissioning of the equipment and the buyer shall provide all necessary support except the supplier's equipment.

④The technical personnel of supplier shall comply with the management system of buyer's factory and comply with the organization and arrangement of buyer.

⑤After acceptance of the equipment, technical staff of the supplier shall provide the debugging report.

⑥Where the buyer shall provide accommodation and accommodation for the supplier's debugging personnel.



4. Shipping Pic

Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance 0

Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance 1

Industrial Automatic 20X20-75X75mm Square Tube Mill Mill High Performance 2
