Adjustable 20X20-60X60mm Carbon Steel Square Tube Mill

Name: Adjustable 20X20-60X60mm Carbon Steel Square Tube Mill
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 20X20-60X60mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	20X20-60X60mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

20X20-60X60mm

Production Name:

Adjustable Size 20X20mm-60X60mm Carbon Steel Pipe Making Machine Square Tube Mill

Feature:

Adjustable

Other Pipe:

Round Pipe And Square Pipe

Max Size:

60 X 60 Mm

Thickness:

1 . 0 - 3 . 0 Mm

Length:

6 M

Rollers:

Include

Warranty:

One Year

Key Words:

Adjustable 20X20-60X60mm Square Tube Mill

Highlight:

High Light

Highlight:

20X20mm Square Tube Mill

20X20mm Carbon Steel Pipe Making Machine

Adjustable Size Square Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Adjustable Size 20X20mm-60X60mm Carbon Steel Pipe Making Machine Square Tube Mill

Product Specifications

Attribute	Value
Production Name	Adjustable Size 20X20mm-60X60mm Carbon Steel Pipe Making Machine Square Tube Mill
Feature	Adjustable
Pipe Types	Round pipe and square pipe
Max Size	60 x 60 mm
Thickness	1.0 - 3.0 mm
Length	6 m
Rollers	Included
Warranty	One year

Product Overview

This high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Available Pipe Sizes:

Square pipe: 20X20-60X60mm
Rectangular pipe: 20X25-40X80mm
Pipe thickness: 1.0-3.0mm

Technical Specifications

Material Specifications:

Material: Low carbon steel, galvanized and carbon steel tube
Mechanical properties: σb≤520Mpa, σs≤340MPa
Strip width: 80-240 mm
Strip thickness: 1.0-3.0 mm
I.D of Coils: 508 mm
O.D of Coils: 1800 mm
Coil Weight: ≤ 3T

Welded Pipe Specifications:

Pipe Diameter: 20X20-60X60 mm
Pipe thickness: 1.0-3.0 mm
Finish pipe length: 6 m
Cut length accuracy: ± 2 mm
Forming speed: 40-100 m/min

Workshop Requirements:

100 m × 8 m, at least 5m high

Note: Can be modified according to actual workshop length

Technical Support & Service

Complete set of technical drawings and operating instructions provided
Free technical training classes on equipment principles, use, and maintenance
Free training for buyer's technicians covering operation, production, debugging, and installation
Technician remains on-site for 3 days after equipment acceptance
One year warranty with 24-hour response time for quality issues
Post-warranty maintenance available (costs apply for travel, labor, and parts)
Lifetime technical support for equipment operation and maintenance

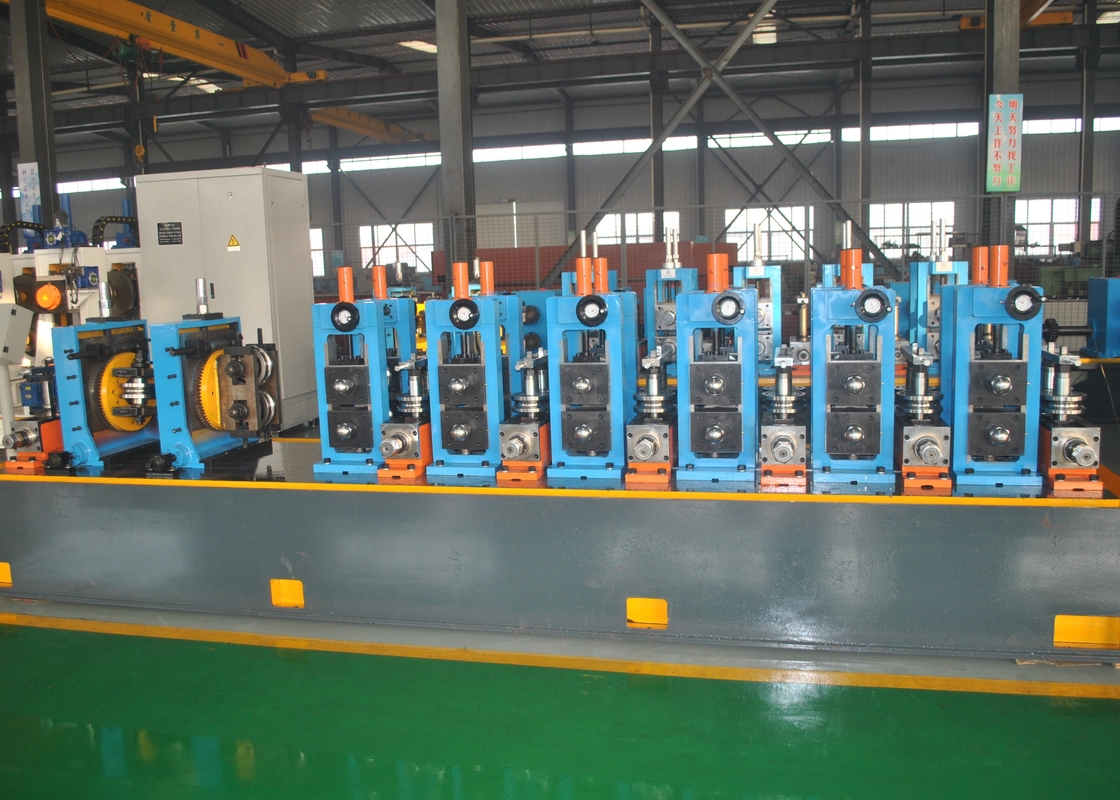

Production Scenes
