CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill

Large Image : CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	150

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	100 working days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	4 set/year

Contact Now

Detailed Product Description

Production Name:	CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill	Model:	70X70-150×150mm
Feature:	Manual Or Automatic	Other Pipe:	Round Pipe And Rectangular Pipe And Square Pipe
Max Size:	150x150 Mm	Thickness:	2 . 0 - 10 . 0 Mm
Cutting Length:	6 - 15 M	Warranty:	One Year
Key Words:	Manual Or Automatic MAX 150x150 MM Square
Highlight:	150x150MM welded pipe production line , CE welded pipe production line , 150x150MM steel pipe production line

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill

I. CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill Equipment Introduction

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill is mainly to produce the round pipe from 89-190mm with thickness 2.0-10.0mm, the square pipe size70x70-150x150mm,, thickness is from 2.0-10.0mm. This production line each unit equipment, full use of the domestic and foreign similar equipment, innovative design, full control with PC or computer control, advanced technology, convenient operation and maintenance, and reached the international level in the early ninety’s, for the domestic leading level.

II.CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill Main Parameters and Specifications:

Hot rolled or cold rolled steel strip (meet GB700-88,GB1591-88)

δs Yield point ≤345Mpa , δb Tensile strength ≤610Mpa
Thickness of strip :Round pipe thickness:2.0-10.0mm Square pipe thickness 2.0-10.0mm, Rectangle pipe thickness 2.0-10.0mm
Steel strip width:280-600mm(±0.2mm)
Steel coil inner diameter:Φ508mm ~Φ760mm (the buyer confirm finally)
Steel coil out diameter:Φ1200-Φ2000mm (the buyer confirm finally)
Max coil weight:15,000Kg

Pipe material	Low carbon steel and low alloy constructional steel
OD of coil	Φ 1200-2000 mm
ID of coil	Φ 508-760 mm
Thickness of strip	2 . 0 - 10 . 0 mm
Weight of strip	Max 15000 kg
Strip width	280 - 600mm
Welding thickness	2 . 0 - 10 . 0 mm
Length	6-12 m
Forming speed	20-50 m / min

III. High Performance High Speed Steel Pipe Forming Machine Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

IV. Procedure of inspection & testing in detail

(1) Check the parts surface, the burr, scratch, gap is prohibit .

(2) Only the satisfied parts can be install on the machine.

(3) Examine the rotate part, they should be moved freely.

(4) Examine the fixed portion, they should be fixed strictly.

(5) All bearings should fit tightly.

(6) The structure of the whole machine should be reasonable.

(7) Examine the whole composition according to the drawing.

(8) Testing the hydraulic machine.

(9) Testing the pneumatic machine.

(10) Testing the electric part.

(11) Testing all rotation part.

(12) Examine the connection part.

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

V. About Factory

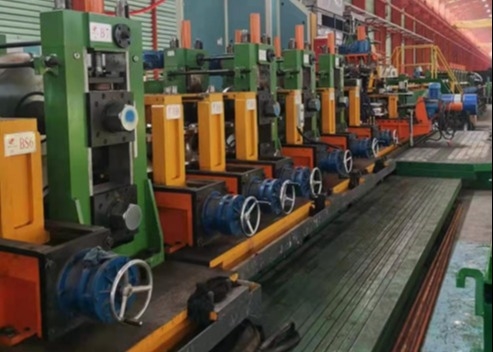

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill 0

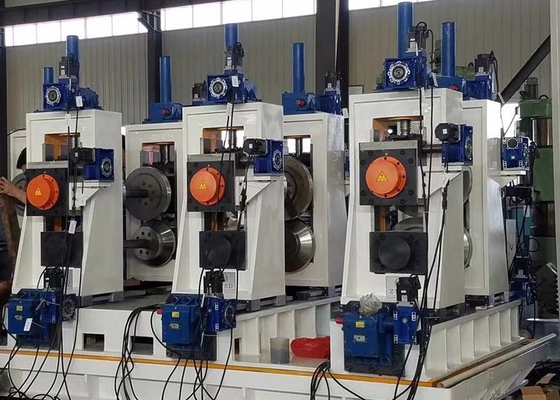

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill 1

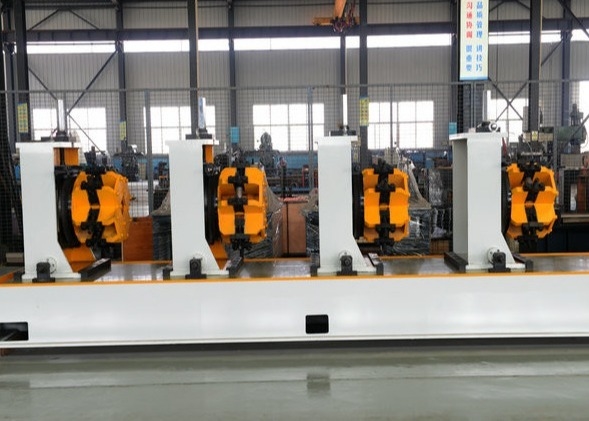

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill 2
