Home > products >

20m/Min 25mm Water Down Round Steel Pipe Production Line

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

Mill Name:

20m/Min 25mm Water Down Round Tube Machinery Steel Pipe Production Line

Feature:

20m/Min 25mm Water Down Round Steel Pipe

Other Pipe:

Round , Rectangle Pipe And Square Pipe

Max Size:

25 - 60 Mm

Thickness:

0 . 6 - 3 . 5 Mm

Length:

4 - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

20m/Min 25mm Water Down Round Steel Pipe

Highlight:

High Light

Highlight:

20m/Min Round tube mill

25mm Round tube mill

25mm tube Making Equipment

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

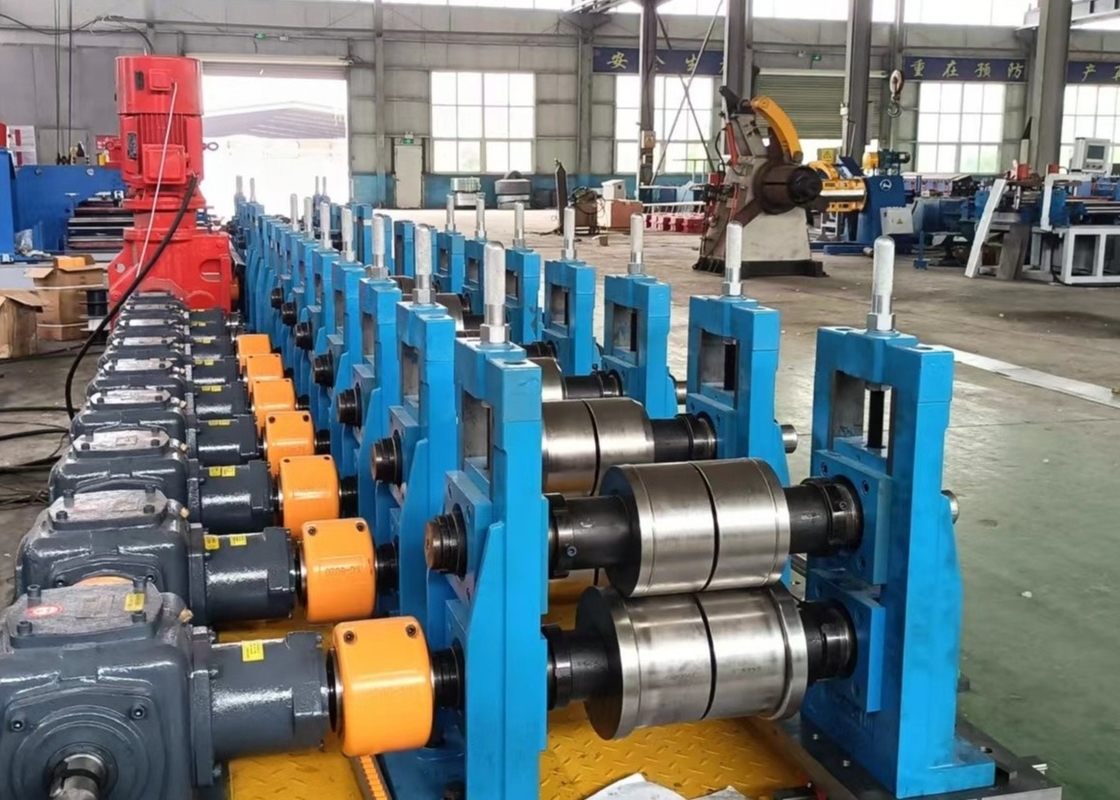

20m/Min 25mm Water Down Round Tube Machinery Steel Pipe Production Line

Product Specifications

Attribute	Value
Mill Name	20m/Min 25mm Water Down Round Tube Machinery Steel Pipe Production Line
Feature	20m/Min 25mm Water Down Round Steel Pipe
Other pipe types	Round, rectangle pipe and square pipe
Max size	25 - 60 mm
Thickness	0.6 - 3.5 mm
Length	4 - 6 m
Rollers	Included
Warranty	One year

General Introduction

This high frequency straight welded pipe mill line is used to manufacture welded steel pipe. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line design offers both economical and practical solutions.

Round pipe size: 25-60mm
Square pipe size: 20X20-60X60mm
Rectangular pipe size: 20X25-40X80mm
Pipe thickness: 0.6-3.5mm

Main Parameters and Specifications

Material Specifications

Parameter	Specification
Material	Low carbon steel, galvanized and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	100 - 190 mm
Strip thickness	0.6 - 3.5 mm
I.D of Coils	Φ 480 - 510 mm
O.D of Coils	φ 1000 - 1600 mm
Coil Weight	≤ 4T

Welded Pipe Specification

Parameter	Specification
Pipe Diameter	Φ 25～ φ 60 mm
Pipe thickness	0.6 - 3.5 mm
Finish pipe length	4 - 6 m
Cut length accuracy	± 3 mm
Forming speed	20 - 70 m/min

Workshop Requirements

100m × 8m, at least 5m high

Note: Can be modified according to actual workshop length

Scope of Cooperation

Supplier Provided

Equipment debugging and installation assistance
Technical training
Complete after-sales service and permanent technical advice
Homemade and spare parts for equipment

Buyer Provided

Power transformer and input power cable
Pipe and distilled water for cooling system
Heating equipment and welder infrastructure
Installation and debugging tools, production and maintenance tools
On-site lifting and equipment installation

Installation and Debugging

Buyer installs equipment with supplier assistance
Supplier provides complete installation dimensions and wiring requirements
Supplier responsible for commissioning with buyer support
Supplier technicians comply with buyer's factory management
Supplier provides debugging report after acceptance
Buyer provides accommodation for supplier's debugging personnel

Technical Services

Complete technical drawings and operating instructions provided
Free technical training classes available
Free training for buyer's technicians covering operation, production, and maintenance
Technician remains on-site for 3 days post-acceptance
One year free support for equipment quality issues (response within 24 hours)
After first year, maintenance services available at cost
Ongoing technical support throughout equipment service life
