95mm Dia Straight Seam Welding Machine for Steel Pipe Production

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	95

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

100m/Min 95mm Dia Straight Seam Welding Machine Steel Pipe Production Line

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

25-95mm

Thickness:

1-3.5mm

Speed:

20-100m/min

Key Words:

100m/Min 95mm Dia Straight Seam Welding Machine

Highlight:

High Light

Highlight:

95mm Dia ERW Tube Mill

95mm Dia ERW pipe Mill

100m/Min ERW Tube Mill

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

100 working days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

100m/Min 95mm Dia Straight Seam Welding Machine Steel Pipe Production Line

Product Specifications

Attribute	Value
Production Name	100m/Min 95mm Dia Straight Seam Welding Machine Steel Pipe Production Line
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	25-95mm
Thickness	1-3.5mm
Speed	20-100m/min

Product Overview

This high-frequency welded pipe mill line is designed to produce welded pipes of Ф25～95mm in diameter with wall thickness of 1～3.5mm, including square, rectangular, and deformed pipes of corresponding sizes. Featuring advanced roll pass design, the production line delivers welded steel pipes with superior quality machining and high precision assembly.

Material Specifications

Standard	YB189-64
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50～240mm
Strip thickness	0.4～2.75mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Tube Mill Machine Specifications

Round Pipe Diameter	55X55－160X160mm
Pipe thickness	0.4-2.75mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	60-120m/min

Power & Utility Requirements

Utility	Specification
Power	Approx. 600KW, 380V/60Hz/3phases
Circulation Cooling Water	Flow: 20T/h～30 T/h, Pool Volume: 30m³
Compressed Air	Flow: 5m³/min, Pressure: 5～11kg/cm²
Workshop Requirements	6m wide, 70m long, minimum 5m ceiling height

Our Service Commitment

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sales and after-sales support including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize production and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements

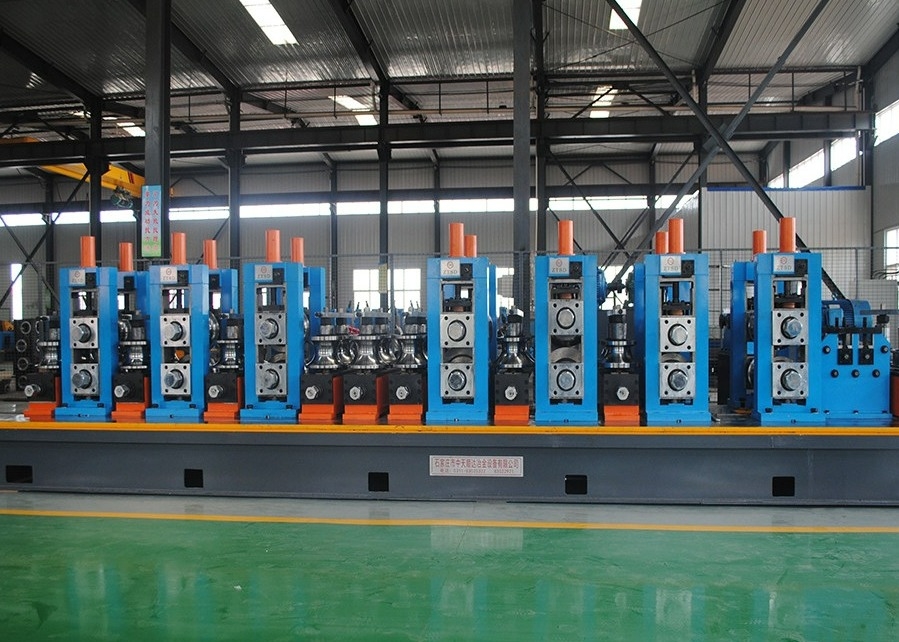

Product Gallery
