Adjustable Steel Pipe Production Line 114-219mm 120mM/Min Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	219

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

219

Production Name:

Adjustable Large Pipe Size Steel Pipe Production Line With Max 120mM/ Min Running Speed

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

114-219mm

Thickness:

3-9mm

Speed:

60-120M/Min

Key Words:

Adjustable Large Pipe Size

Highlight:

High Light

Highlight:

Adjustable Size Steel Pipe Production Line

219mm Steel Pipe Production Line

219mm steel tube production line

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

160 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 Sets/Year

Product Description

Adjustable Size 114-219mm Steel Pipe Production Line Max 120mM/Min Speed

Product Specifications

Attribute	Value
Production Name	Adjustable Large Pipe Size Steel Pipe Production Line With Max 120mM/Min Running Speed
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	114-219mm
Thickness	3-9mm
Speed	60-120M/Min
Key Features	Adjustable Large Pipe Size

Product Overview

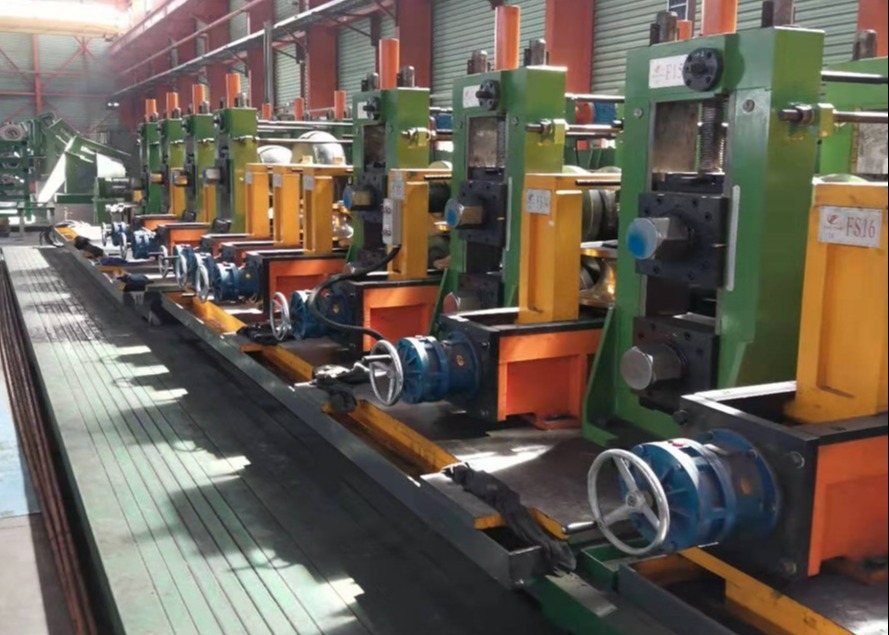

The 219 High-Frequency Welded Pipe Mill Line is engineered to produce round pipes (Diameter φ114-219mm, thickness 3-9mm). Utilizing advanced roll pass design, this production line manufactures high-quality welded steel pipes with precision machining and assembly.

Design Advantages

Enhanced operational and production performance
Improved workplace environment and safety
Superior product stability
Increased productivity
Reduced roll costs

Technical Specifications

Material Specifications

Standard: YB189-64

Material: Low carbon steel and low alloy constructional steel

Mechanical properties: σb≤520Mpa, σs≤340MPa

Strip Width: 357～688mm

Strip Thickness: 1.5～6.0mm

Steel strip coil: Inner Diameter φ508～φ610mm, Outer Diameter φ1000～φ2000mm

Coil Weight: ≤12T

Product Specifications

Pipe Size: Round: φ114～φ219mm

Wall Thickness: 3～9mm

Fixed Cutting Length: 8～12m

Cutting Precision: ±1.5mm

Forming Speed: 20～50m/min

Power & Utility Requirements

Parameter	Specification
Power Volume	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water Flow	20T/h～30 T/h
Pool Volume	30m³
Compressed Air Flow	5m³/min
Pressure	5～11kg/cm²
