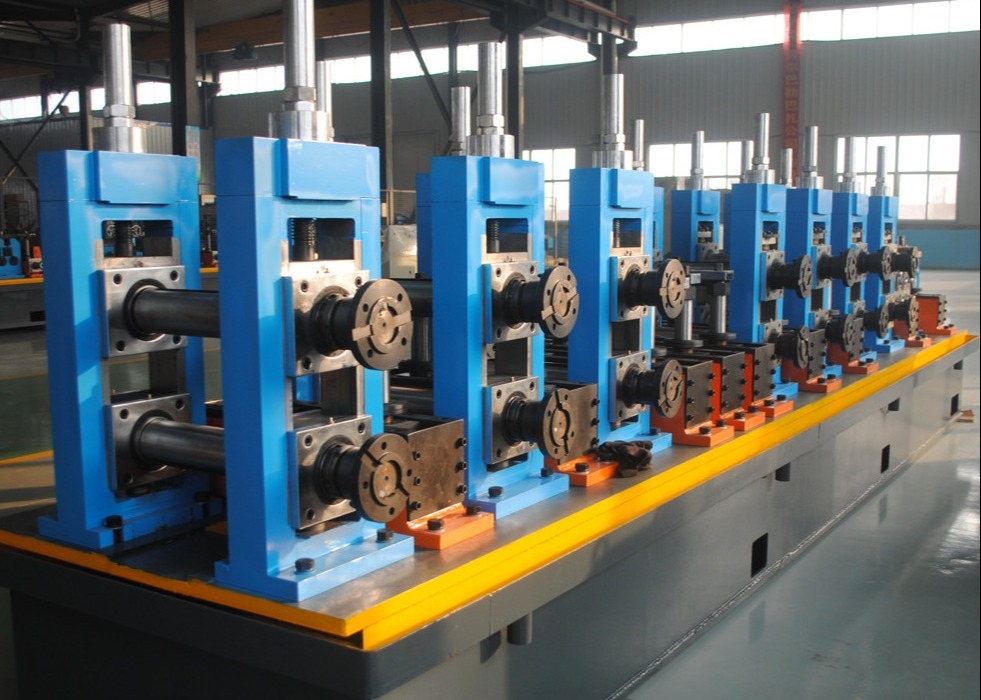

1-3mm Thick Rectangular HF Welded Tube Mill 100m/min Steel Pipe Line

Name: 1-3mm Thick Rectangular HF Welded Tube Mill 100m/min Steel Pipe Line
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG60

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG60

Product Name:

1-3mm Thick Rectangular Hf Welded Tube Mill Speed 100m/Min Steel Pipe Production Line

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

40-100 M / Min

Pipe Shape:

Round, Square & Rectangular

Color:

Blue

Warranty:

1 Year

Keywords:

Speed 100m/Min Steel Pipe Production Line

Highlight:

High Light

Highlight:

3mm thick hf Welded tube Mill

hf Welded tube Mill 100m/Min

3mm thick welded pipe mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

1-3mm Thick Rectangular HF Welded Tube Mill Speed 100m/Min Steel Pipe Production Line

Product Specifications

Attribute	Value
Product name	1-3mm Thick Rectangular HF Welded Tube Mill Speed 100m/Min Steel Pipe Production Line
Pipe material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	40-100 m/min
Pipe Shape	Round, Square & Rectangular
Color	blue
Warranty	1 year

Product Overview

This high-frequency welded steel pipe production line manufactures precision pipes with thickness ranging from 1-3mm. Incorporating advanced domestic and international pipe-making technology, our innovative design offers both economic and practical advantages for industrial applications.

Available pipe dimensions:

Square pipe: 20×20mm to 60×60mm
Rectangular pipe: 20×25mm to 40×80mm
Pipe thickness: 1.0-3.0mm

HF Welded Pipe Mill Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7×50
2	H32	0.3-2.0	12-32	30-120	75	100	7×50
3	H50	0.8-2.5	16-50	30-110	110	150	7×60
4	H60	0.8-3	20-60	30-100	132	200	7×65
5	H76	1-3	12-76	30-100	320	250	8×80
6	H89	1-4	32-89	30-80	350	300	8×80
7	HG114	1.5-5	45-114	30-60	400	300	10×100
8	HG165	3-7	60-165	30-50	600	400	10×110
9	HG219	4-8	114-219	20-40	800	500	12×150
10	HG273	4-10	114-273	15-30	1000	600	18×160
11	HG325	4-12	165-325	10-30	1200	600	18×180
12	HG426	4-16	165-426	8-25	1400	800	18×180
13	HG508	4-20	219-508	8-20	2000	1000	21×180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Comprehensive Services

On-site engineer dispatch for installation and operator training
One-year quality guarantee with lifetime repair support
Comprehensive pre-sales and after-sales services including:
- Workshop and production output design
- Installation, training, and skilled engineer support
Extended engineer support available (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
