High Frequency Welded Steel Pipe Production Line 2-9mm Thickness

Name: High Frequency Welded Steel Pipe Production Line 2-9mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG165

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG165

Product Name:

Thickness 2-9mm High Frequency Welded Steel Pipe Production Line High Precision

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

400KW

Speed:

60 M / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

76.3mm-165.2mm

Warranty:

1 Year

Keywords:

Square Pipe Size75x75-150x150mm Steel Pipe Production Line

Highlight:

High Light

Highlight:

9mm high frequency tube mill

150x150mm high frequency tube mill

9mm high frequency welded pipe mill

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Thickness 2-9mm High Frequency Welded Steel Pipe Production Line High Precision

Product Specifications

Attribute	Value
Product name	Thickness 2-9mm High Frequency Welded Steel Pipe Production Line High Precision
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	400KW
Speed	60 m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	76.3mm-165.2mm
Warranty	1 year

Product Information

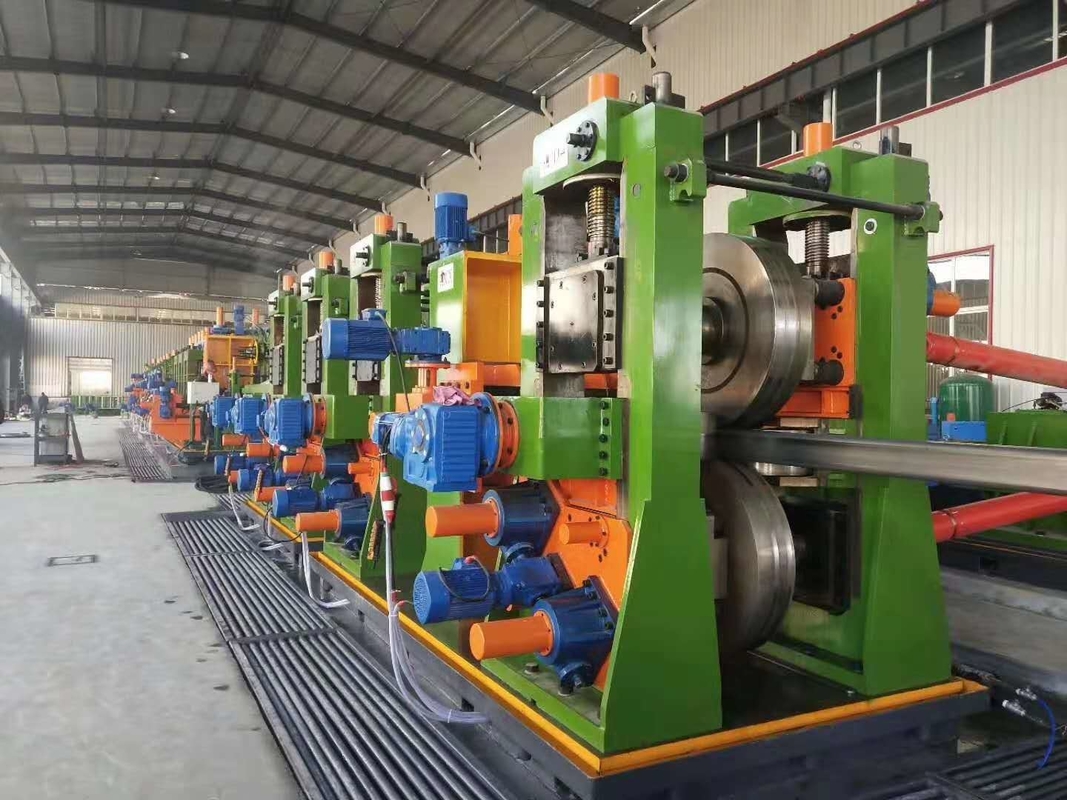

The HG 165.2x9(7") high precision high frequency welded pipe production line is designed for structural pipe manufacturing. It produces:

Round pipes: 76.3-165.2mm diameter with 2.0-9.0mm thickness
Square pipes: 75x75-150x150mm with 2.0-9.0mm thickness
Rectangular pipes: 100x50-200x100mm with 2.0-9.0mm thickness

This production line incorporates innovative design elements from domestic and international equipment, featuring full PC/computer control for advanced operation and maintenance. The technology meets international standards from the 1990s and represents domestic industry leadership.

ERW Pipe Mill Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service

1. On-site engineer support for installation and operator training

2. Warranty: One year quality guarantee with lifetime repair service

3. Comprehensive pre-sales and after-sales support including workshop design and production output planning

4. Extended engineer support available for 1-12 months to optimize output and reduce waste

5. Complete project design services for stainless steel and carbon steel pipe production

6. Full responsibility for loading and shipping arrangements
