90m/Min Square Tube Mill for 20x20-60x60mm Carbon Steel Pipes

Name: 90m/Min Square Tube Mill for 20x20-60x60mm Carbon Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG95
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG95

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG95

Product Name:

Blue Welded Pipe Production Line 90m/Min Size 20*20-60*60mm Square Tube Mill

After-sales Service Provided:

On-Site Engineers

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

400KW

Speed:

MAX 90 M / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

25mm-95mm

Warranty:

1 Year

Keywords:

Square Pipe Size 20*20-60*60mm Square Tube Mill

Highlight:

High Light

Highlight:

60*60mm Automatic Tube Mill

Tube Mill Production Line 90m/Min

60*60mm Tube Mill Production Line

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Blue Welded Pipe Production Line 90m/Min Size 20*20-60*60mm Square Tube Mill

Product Specifications

Attribute	Value
Product name	Blue Welded Pipe Production Line 90m/Min Size 2020-6060mm Square Tube Mill
After-sales service provided	On-Site Engineers
Pipe material	Carbon Steel
Voltage	380V
Power	400KW
Speed	MAX 90 m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	25mm-95mm
Warranty	1 year

Product Description

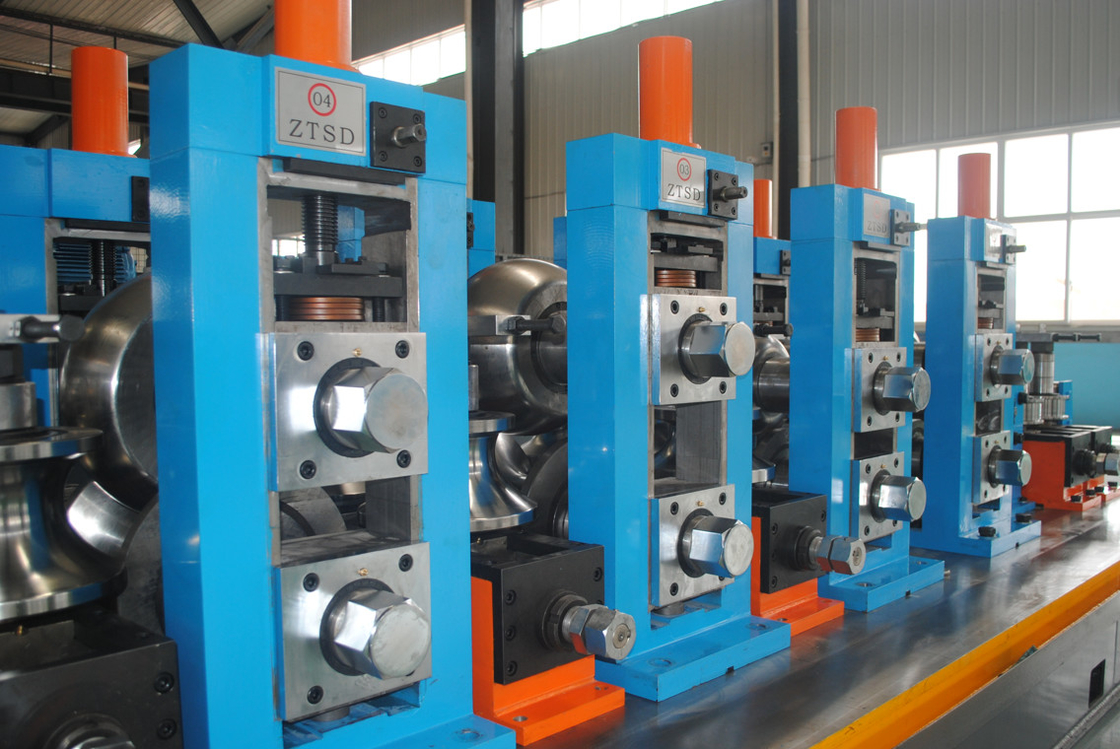

The Blue Welded Pipe Production Line adopts roller type forming principle and high-frequency induction welding. The strip is fed into the forming machine by the feeding device in the mill and the forming roller continuously rotate and press the strip into the required shape. Due to the skin and the kindred effect, the high-frequency current is concentrated on the weld joint that is heated rapidly and reaches the welding temperature. The tube seam is welded under the pressure of squeeze rollers. The finished welded tube with required size can be obtained after the cooling, sizing and primary straightening.

ERW Pipe Mill Models

Serial number	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service

We will send the engineer for the installation and training your workers how to operate this machine correctly
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free
We supply pre-sell and after-sell service including workshop design, production output design, installation and training
We can send engineers to work for you several months or 1 year to help improve output, reduce waste and decrease costs
We provide design services for whole projects for stainless steel pipe making/carbon steel pipe making
We handle loading and shipping
