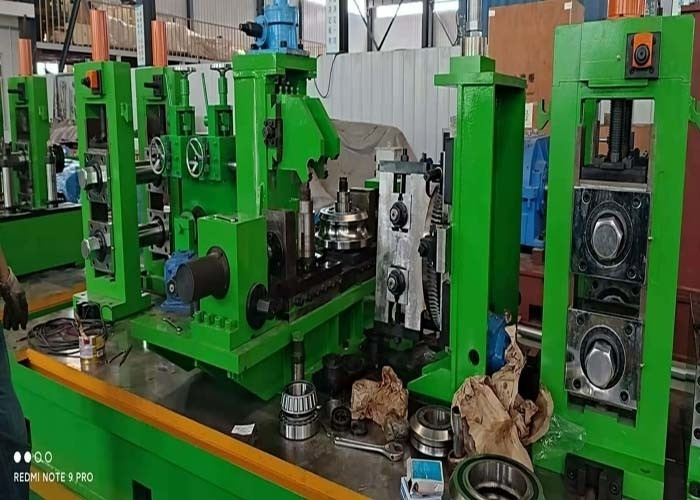

Green High Frequency Tube Mill 76mm-153mm Steel Pipe Production Line

Name: Green High Frequency Tube Mill 76mm-153mm Steel Pipe Production Line
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG153
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG153

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG153

Product Name:

Color Green High Frequency Tube Mill Diameter 76mm-153mm Steel Pipe Production Line

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

10-60m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

76mm-153mm

Warranty:

1 Year

Keywords:

Pipe Diameter 76mm-153mm

Highlight:

High Light

Highlight:

153mm High Frequency Tube Mill

153mm Steel Pipe Production Line

76mm Steel Pipe Production Line

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Green High Frequency Tube Mill Machine 76mm-153mm Steel Pipe Production Line

Product Specifications

Attribute	Value
Product name	Color Green High Frequency Tube Mill Diameter 76mm-153mm Steel Pipe Production Line
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	10-60m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	76mm-153mm
Warranty	1 year

Product Overview

The HG153 High-Frequency Welded Pipe Mill Line is designed to produce welded square pipes of 60×60-120×120mm in side length and 1.2-4.5mm in wall thickness, as well as round, rectangular and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.

Available Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7×50
2	H32	0.3-2.0	12-32	30-120	75	100	7×50
3	H50	0.8-2.5	16-50	30-110	110	150	7×60
4	H60	0.8-3	20-60	30-100	132	200	7×65
5	H76	1-3	12-76	30-100	320	250	8×80
6	H89	1-4	32-89	30-80	350	300	8×80
7	HG114	1.5-5	45-114	30-60	400	300	10×100
8	HG165	3-7	60-165	30-50	600	400	10×110
9	HG219	4-8	114-219	20-40	800	500	12×150
10	HG273	4-10	114-273	15-30	1000	600	18×160
11	HG325	4-12	165-325	10-30	1200	600	18×180
12	HG426	4-16	165-426	8-25	1400	800	18×180
13	HG508	4-20	219-508	8-20	2000	1000	21×180

Production Process

The complete production process includes: Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Hydrostatic testing → End facer → Straightener → Packing → Storage

Comprehensive Service Package

Installation & Training: Our engineers will install the machine and train your workers in proper operation
Warranty Coverage: 1-year quality guarantee with lifetime repair support. Free repair parts during warranty period (excluding human error)
Full Service Support: Comprehensive pre-sale (workshop design, production output planning) and after-sale services
Extended Engineering Support: Option for our engineers to work onsite for several months to optimize output and reduce costs
Project Design: Complete project planning for stainless steel and carbon steel pipe production
Logistics Support: We handle all loading and shipping arrangements
