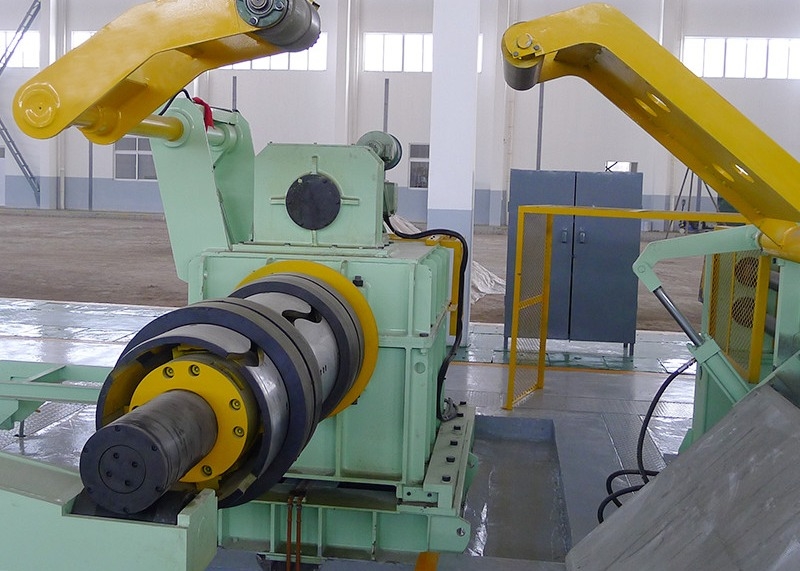

3x1500mm Carbon Steel Sheet Slitting Machine with CE ISO9000 BV
3x1500mm Carbon Steel Sheet Slitting Machine with CE ISO9000 BV
  • 3x1500mm Carbon Steel Sheet Slitting Machine with CE ISO9000 BV
  • 3x1500mm Carbon Steel Sheet Slitting Machine with CE ISO9000 BV
  • 3x1500mm Carbon Steel Sheet Slitting Machine with CE ISO9000 BV

3x1500mm Carbon Steel Sheet Slitting Machine with CE ISO9000 BV

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 3 X 1500
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
3 X 1500
Production Name:
3x1500mm Carbon Steel Sheet Slitting Machine Production Line With CE ISO9000 BV
Model:
3 X 1500
Feature:
Directly And Stable
Max Size:
3 X 1500 Mm
Thickness:
0.5 - 3 Mm
Cutting Length:
1500 M
Warranty:
One Year
Key Words:
Steel Sheet Slitting Machine Production Line With CE ISO9000 BV
Highlight:

High Light

Highlight:

Steel Sheet Slitting Machine ISO9000

,

1500mm Steel Sheet Slitting Machine

,

sheet coil slitting machine 1500mm

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
120 working days
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
4 set/year
Product Description
3x1500mm Carbon Steel Sheet Slitting Machine Production Line With CE ISO9000 BV
Product Specifications
Attribute Value
Model 3 X 1500
Feature Directly and Stable
Max Size 3 X 1500 mm
Thickness Range 0.5 - 3 mm
Cutting Length 1500 m
Warranty One Year
Product Description
This production line is designed for continuous longitudinal shearing of strips with widths of 800-1500mm and thicknesses of 0.5-3mm, suitable for hot-rolled ordinary carbon structural steel, low-alloy structural steel, and other materials.
Material Specifications
Parameter Specification
Raw Material Hot rolled steel coil (Q235B), cold-rolled steel plate, galvanized sheet
Outer Diameter Φ800-1800mm
Inner Diameter Φ508mm-610mm
Coil Width 800-1500mm
Steel Strip Thickness 0.5-3.0mm
Max Coil Weight 25 tons
Production Process
The complete process includes: coil preparation → loading car → uncoiler → straight head → centering vertical roller → pinch leveler → cross cutter → disc shear → edge rewinder → transition table → steel belt separation feeding device → recoiler → unloading coil.
Equipment Components
  1. Coil preparation table
  2. Loading car
  3. Uncoiler
  4. Straight head and pinch leveler
  5. Cross cutter
  6. Centering vertical roller
  7. Disc shear
  8. Edge rewinder
  9. Transition table
  10. Feeding device
  11. Recoiler
  12. Unloading car
  13. Hydraulic system
  14. Electronic control system
Packaging & Transportation
Electric control cabinets, consoles, and instruments are packed in wooden boxes. Machinery is shipped with waterproof and rust-proof protection. Transportation costs are borne by buyer.
Installation & Commissioning
Installation is performed by purchaser with supplier guidance. Commissioning takes approximately 25 days with technical support from supplier.
Quality Commitment & Service
  • 1-year equipment warranty with long-term maintenance
  • Complete technical drawings provided
  • Dedicated technical service team available for immediate response
  • On-site after-sales service available when needed
