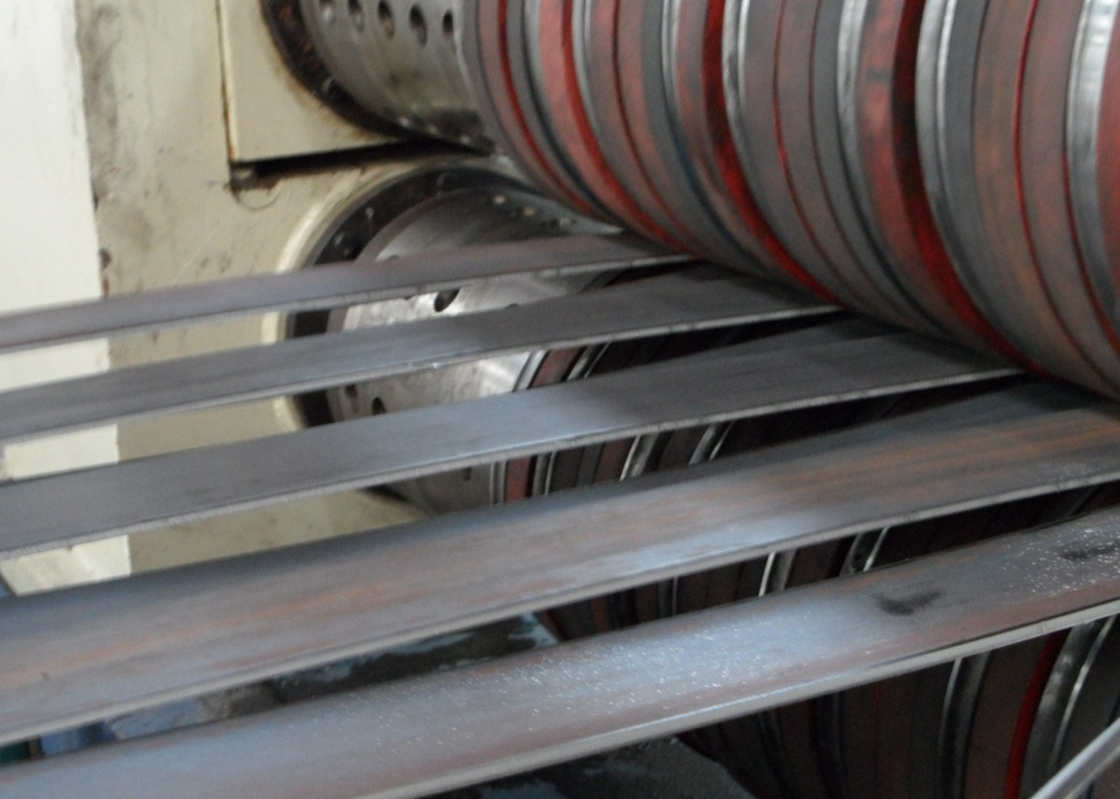

3X1500mm Steel Coil Slitting Machine 90m/Min 0.5-3mm Thickness

Name: 3X1500mm Steel Coil Slitting Machine 90m/Min 0.5-3mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 3X1500 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	3X1500 mm

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

3X1500 mm

Product Name:

Plate Cutting Max. 90m/Min 3X1500mm Steel Coil Slitting Machine

Applicable Materials:

Cold Rolled Carbon Steel, Galvanised Coils, Pre-painted Coils

Equipment Specification:

Customer Specified

Thickness Of Strip:

0.5 - 3 Mm

Coil Weight:

Max. 22,000kg

Speed:

90m/min

Warranty:

One Year

Key Words:

3X1500mm Steel Coil Slitting Machine

Highlight:

High Light

Highlight:

3X1500mm Steel Coil Slitting Machine

90m/Min Steel Coil Slitting Machine

steel coil slitting line Power Saving

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

5 Sets/Year

Product Description

Plate Cutting Max 90m/Min 3X1500mm Steel Coil Slitting Machine

Product Specifications

Product Name	Plate Cutting Max. 90m/Min 3X1500mm Steel Coil Slitting Machine
Applicable Materials	Cold Rolled Carbon Steel, Galvanised Coils, Pre-painted Coils
Equipment Specification	Customer Specified
Thickness of Strip	0.5 - 3 mm
Coil Weight	Max. 22,000kg
Speed	90m/min
Warranty	One Year

Technical Specifications

Parameter	Value
Tensile Strength	550Mpa
Yield Strength	300Mpa
Thickness of Strip	0.70 - 3.00mm
Width of Strip	600 ~ 1500mm
Coil Inside Diameter	508/610mm
Coil Outside Diameter	700~1,800mm
Recoiling Inside Diameter	508mm
Recoiling Outside Diameter	Max.1,600mm
Recoiling Weight	Max. 20,000kg
Min. Slitting Width	50mm
Slitting Capacity	20 slits (1mm thickness) 12 slits (2mm thickness) 5 slits (3mm thickness)

Tolerances

Slitting Width Accuracy	+/- 0.05mm (thickness ≤1.5mm) +/- 0.1mm (thickness >1.6mm)
Edge Burr	<5% thickness (Min 0.03mm)

Performance

Processing Speed	Max. 90m/min
Threading Speed	10m/min

Additional Specifications

Pass Line Height	1,000mm above floor level
Line Direction	From operator's perspective
Painting Color	As required
Required Utilities	Power supply: 3ph AC380V 50Hz, Capacity 220 kw Compressed air pressure: 0.5~0.7Mpa, Capacity 0.5M3/min
