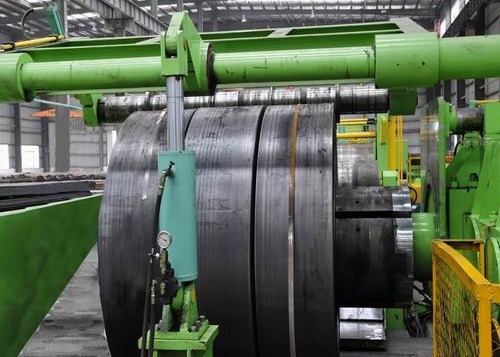

CNC Steel Slitting Machine 1600x6mm 50m/min Cutting Line

Name: CNC Steel Slitting Machine 1600x6mm 50m/min Cutting Line
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 1600X6mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	1600X6mm

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

1600X6mm

Name:

CNC Carbon Steel 1600×6mm Cutting Line Machine 50m/min Steel Slitting Machine

Cutting Speed:

Max 50m/min

Warranty:

1 Year

Weight:

Max 30 Ton

Control:

Cnc

Coil Width:

800~2000mm

Thickness Range:

1-6mm

Key Words:

1600×6mm Slitting Production Line

Highlight:

High Light

Highlight:

1600×6mm Slitting Line Machine

Cnc Galvanized Slitting Line Machine

steel slitter machine 50m/Min

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

4 Sets/Year

Product Description

CNC Carbon Steel 1600×6mm Cutting Line Machine 50m/min Steel Slitting Machine

Product Specifications

Attribute	Value
Name	CNC Carbon Steel 1600×6mm Cutting Line Machine 50m/min Steel Slitting Machine
Cutting speed	max 50m/min
Warranty	1 Year
Weight	Max 30 Ton
Control	CNC
Coil Width	800~2000mm
Thickness Range	1-6mm

General Introduction

This production line is designed for continuous longitudinal shearing of strips with a width of 800-1600mm and thickness of 1-6mm, suitable for hot-rolled ordinary carbon structural steel, low-alloy structural steel, and similar materials.

Material Specifications

Parameter	Specification
Raw Material	Hot rolled steel coil, material Q235B
Outer diameter of steel coil	Φ1600～2000mm
Inner diameter of steel coil	Φ500mm～850mm
Coil width	600～1600mm
Steel strip thickness	1～6mm
Coil Weight	Max 30 tons

Finished Product Specifications

Parameter	Specification
Inner diameter of steel coil	Φ850mm
Outer diameter of steel coil	φ1600～φ2000mm
Coil weight	Max 30 tons
Unit Speed	Drawing shear: 10～50m/min (thickness≤6mm)

Workshop Conditions

Parameter	Specification
Power supply	AC380V 50HZ
Control power supply	AC220V 50HZ
Installed capacity	About 550kW
Industrial air pressure	0.4MPa～0.8MPa
Industrial air flow	3 m³/min
Hydraulic working environment	-10～40°C
Hydraulic system cooling	Circulating water cooling
Unit coolant	20～30t/h
Coolant pressure	1.2～2kg/cm²

Production Process

Coil preparation
Loading car
Uncoiler
Straight head
Centering vertical roller
Pinch leveler
Cross cutter
Centering vertical roller
Disc shear
Edge rewinder
Transition table
Steel belt separation feeding device
Recoiler
Unloading coil

Note: The product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
