CNC High Frequency Welded Pipe Mill Line SS 60 Model

Name: CNC High Frequency Welded Pipe Mill Line SS 60 Model
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: SS 60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	SS 60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

SS 60

Production Name:

High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine

Model:

SS 60

Feature:

High Precision And Good Stability

Max Size:

1.8 X 60 Mm

Thickness:

0.4 - 1.8 Mm

Length:

6 - 8 M

Warranty:

One Year

Key Words:

High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine

Highlight:

High Light

Highlight:

effective high frequency welded pipe mill

CNC high frequency welded pipe mill

effective steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

120 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

Effective High Frequency Welded Pipe Mill Line Control By CNC

Product Specifications

Attribute	Value
Production Name	High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine
Model	SS 60
Feature	High precision and good stability
Max size	1.8 X 60 mm
Thickness	0.4 - 1.8 mm
Length	6 - 8 m
Warranty	One year

Product Description

The high-frequency welded pipe production line is designed for manufacturing electric welded stainless steel pipes with diameters of Φ12-Φ60mm and wall thicknesses of 0.4-1.8mm. This CNC-controlled steel pipe making machine delivers exceptional precision and stability, with main components processed by CNC machining centers to ensure superior product quality.

Main Parameters and Specifications

Material Specifications

Material	Carbon Steel
Mechanical properties	δs≤500Mpa δb≤235Mpa
Strip Width	36-190mm
Strip Thickness	0.4-1.8mm
Inner Diameter of Coils	Φ460-Φ520mm
Outer Diameter of Coils	Φ1200-Φ1800mm
Coil Weight	2.5T

Pipe Specifications

Pipe Diameter	Round pipe: φ12-φ60mm
Thickness	0.4-1.8mm
Length	6-8m
Pipe-cutting Precision	±1.5mm
Forming Speed	20-120m/min

Buyer Requirements

Work shop: 80x6m, H＞5m (crane to ground)
Power: Approx.450KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow:20T/h～30 T/h Pool Volume:40m3
Compressed Air: Flow:5m3/min 5-7kg/cm2

Technical Documentation Provided

Instruction Manual (provided at the time of a month before delivery time)
Inspection Certificate (provided at the delivery time)
Loading Order (Provided at the delivery time)
Layout Drawing (provided at the time of a month before delivery time)
Ground Base Drawing (provided at the time of a month before delivery time)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts

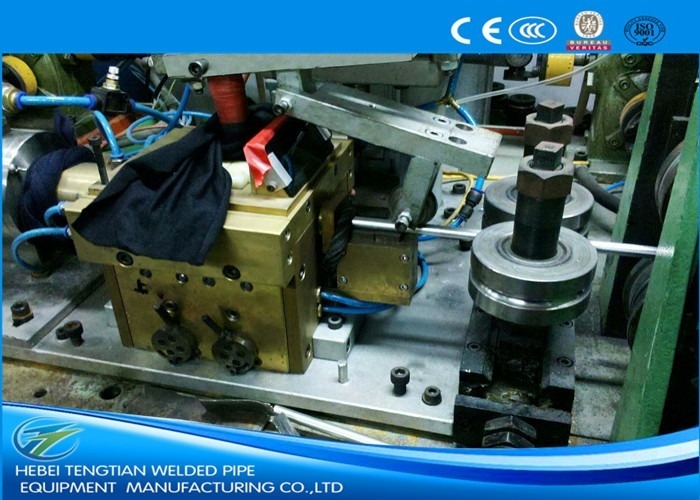

Product Images
