Product Details:
Payment & Shipping Terms:
|
| Product Name: | Blue Tube Mill Machine 76mm- 153mm Steel Pipe Production Line Tube Mill Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Pipe Material: | Carbon Steel | Voltage: | 380V |
| Power(w): | 400KW | Speed: | 120m / Min |
| Pipe Shape: | Round, Square & Rectangular | Round Pipe Diameter: | 76mm-153mm |
| Warranty: | 1 Year | Keywords: | Speed 120m/min Tube Mill Machine |
| High Light: | 120m/min Steel Tube Mill,153mm Steel Pipe Production Line,153mm Steel Tube Mill |
||

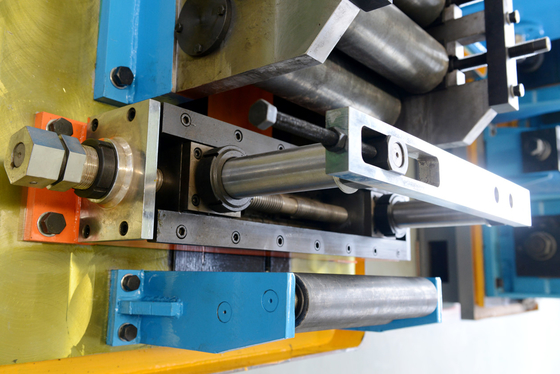

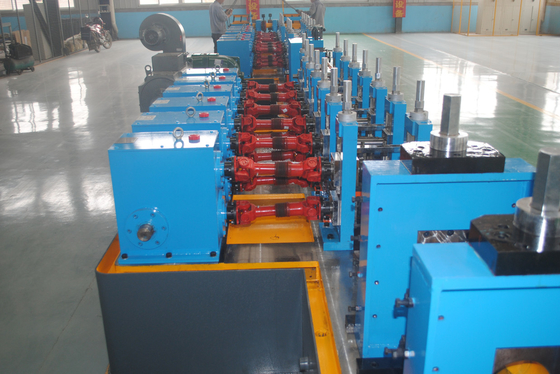

HG153 High-Frequency Welded Pipe Mill Line is designed to produce welded square pipes of 60*60-120*120mm in Side length and 1.2～4.5mm in wall thickness as well as round, rectangular and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
|
Serial number |
Model |
Thickness(mm) |
Specification(mm) |
Speed(m/min) |
main engine(kw) |
Power(kw) |
area |
|
1 |
H20 |
0.3-1 |
8-20 |
30-120 |
55 |
60 |
7*50 |
|
2 |
H32 |
0.3-2.0 |
12-32 |
30-120 |
75 |
100 |
7*50 |
|
3 |
H50 |
0.8-2.5 |
16-50 |
30-110 |
110 |
150 |
7*60 |
|
4 |
H60 |
0.8-3 |
20-60 |
30-100 |
132 |
200 |
7*65 |
|
5 |
H76 |
1-3 |
12-76 |
30-100 |
320 |
250 |
8*80 |
|
6 |
H89 |
1-4 |
32-89 |
30-80 |
350 |
300 |
8*80 |
|
7 |
HG114 |
1.5-5 |
45-114 |
30-60 |
400 |
300 |
10*100 |
|
8 |
HG165 |
3-7 |
60-165 |
30-50 |
600 |
400 |
10*110 |
|
9 |
HG219 |
4-8 |
114-219 |
20-40 |
800 |
500 |
12*150 |
|
10 |
HG273 |
4-10 |
114-273 |
15-30 |
1000 |
600 |
18*160 |
|
11 |
HG325 |
4-12 |
165-325 |
10-30 |
1200 |
600 |
18*180 |
|
12 |
HG426 |
4-16 |
165-426 |
8-25 |
1400 |
800 |
18*180 |
|
13 |
HG508 |
4-20 |
219-508 |
8-20 |
2000 |
1000 |
21*180 |
Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
