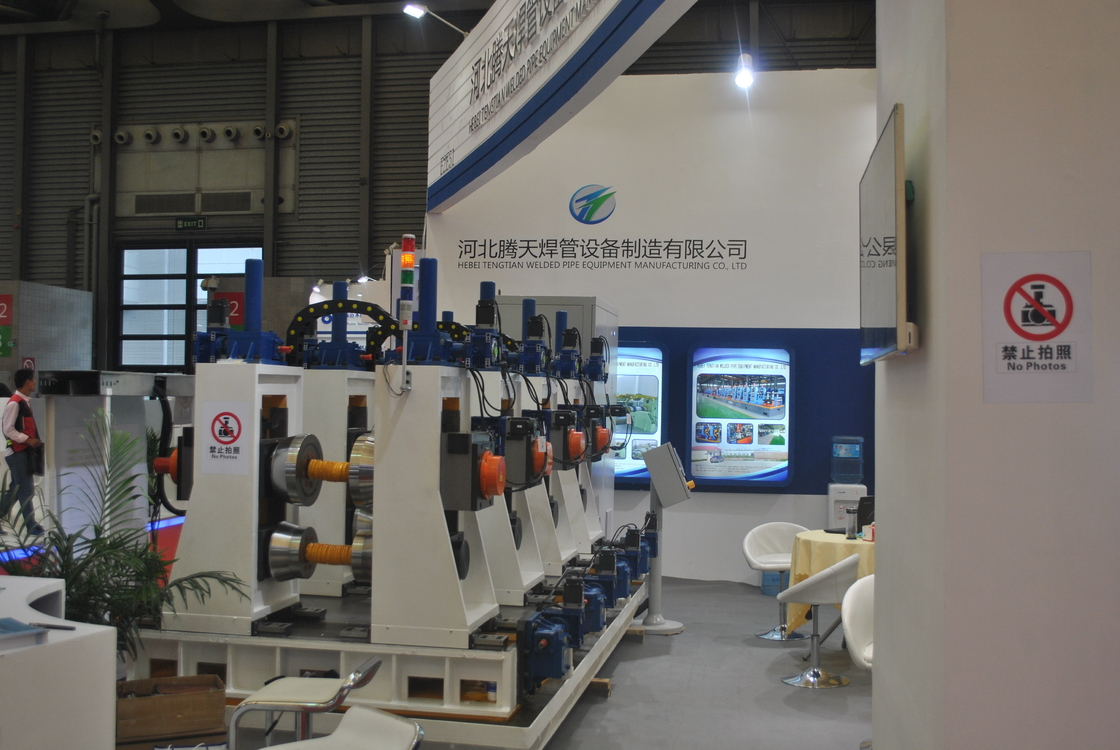

Automatic Tube Mill 320-530mm Round Square Rectangular Pipe

Name: Automatic Tube Mill 320-530mm Round Square Rectangular Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG530
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG530

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG530

Product Name:

Diameter 320mm-530mm Automatic Tube Mill Max Speed 25m/Min

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1600KW

Speed:

5 - 25m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

320mm - 530mm

Warranty:

1 Year

Keywords:

Welded Round Tube Automatic Tube Mill

Highlight:

High Light

Highlight:

530mm Welded Tube Mill

320mm Round Tube Mill

Tube Mill Machine 25m/Min

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Diameter 320mm-530mm Automatic Tube Mill Max Speed 25m/Min

Product Attributes

Attribute	Value
Product name	Diameter 320mm-530mm Automatic Tube Mill Max Speed 25m/Min
After-sales service provided	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	1600KW
Speed	5 - 25m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	320mm - 530mm
Warranty	1 year
Keywords	Welded Round Tube Automatic Tube Mill

Product Information

HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diaφ325-530mm, thickness 4-9mm).

Use FFX molding: On this equipment, the most economical and reasonable molding process is used to continuously and smoothly bend into a seamed tube. Due to the special design of the entire roll structure and its adjustment, it can adapt to the forming of all product sizes and specifications without the need to replace rolls.

The closed-hole type frame part is a three-frame four-high rolling mill, and the rolls need to be replaced according to different product outer diameters. In order to facilitate quick change of specifications, the closed-hole type frame frame is specially designed and installed in a special replacement frame. The connection and separation with the base and the driving part are driven by hydraulic pressure, and the replacement can be completed in tens of minutes.

ERW PIPE MILL Model

Serial number	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	main engine(kw)	Power(kw)	area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service

We will send the engineer for the installation and training your workers how to operate this machine in correct way.
Warranty Team: One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
We will be responsible for the loading and shipping.
