HG60 Tube Mill Machine for Galvanized Steel Pipe 32-60mm

Name: HG60 Tube Mill Machine for Galvanized Steel Pipe 32-60mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG60

Machine Name:

HG60 Roll Forming Tube Mill Machine For Galvanized Steel Tube

Product:

Round Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Square Pipe

Max Size:

60mm

Thickness:

3mm

Length:

3-6m

Rollers:

Not Include

Model:

Key Words:

HG60 Roll Forming Tube Mill Machine For Galvanized Steel Tube

Highlight:

High Light

Highlight:

ISO9000 Roll Forming Tube Mill

ISO9000 Galvanized Pipe Mill

Galvanized Pipe Mill Energy Efficient

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

ISO9000 HG60 Roll Forming Tube Mill Machine for Galvanized Pipe Production

Key Specifications

Attribute	Value
Machine Name	HG60 Roll Forming Tube Mill Machine For Galvanized Steel Tube
Product	Round pipe, Square pipe
Material	Carbon steel and galvanized steel
Max Size	60mm
Thickness	1-3mm
Length	3-6m
Model	60

Machine Overview

The HG60 Automatic Tube Mill is engineered to produce high-quality square pipes (32-60mm) with thickness ranging from 1-3mm. Featuring precision roll pass design, this production line delivers welded steel pipes with exceptional machining quality and assembly precision.

Design Features

Designed with operational efficiency and safety in mind, the HG60 production line incorporates a double-radius hole design to enhance performance while reducing roller costs for maximum productivity.

Technical Specifications

Material Specifications:

- Standard: International standard tube mill machine

- Material: Galvanized steel

- Mechanical properties: σb≤520Mpa, σs≤365MPa

- Strip Width: 100-200mm

- Strip Thickness: 1-3mm

- Coil Dimensions: Φ508mm (inner), Φ1300-2000mm (outer)

- Max Coil Weight: 2T

Pipe Specifications:

- Pipe Diameter: 32-60mm (round pipe)

- Length: 3-6m

- Cutting Precision: 0-6mm

- Forming Speed: Up to 90m/min (for 2mm thickness)

Buyer-Supplied Requirements:

- Workshop: 60x12m, Height >5m (with crane)

- Power: ~3500KW 380V/60Hz/3phases

- Cooling Water: 30+30 CBM flow, 40m³ pool

- Compressed Air: 5m³/min, 5-7kg/cm²

- External Cabling

Production Process

Strip steel to coil

Uncoiler

End straightener

Flattener

Shear welder

Storage material unit

Forming, welding, cooling

Pipe diameter sizing

Length cutting

Inspection

Packaging

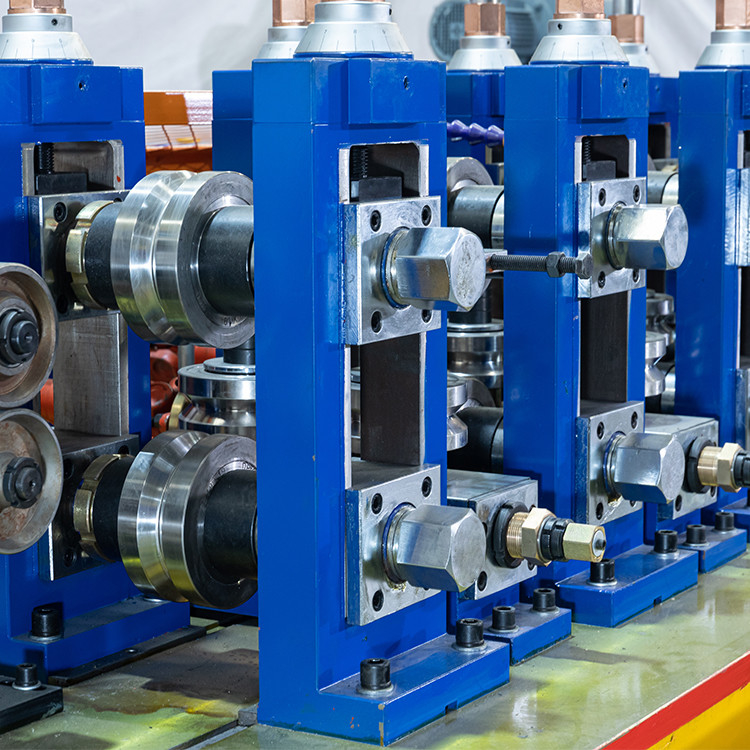

Machine Images
