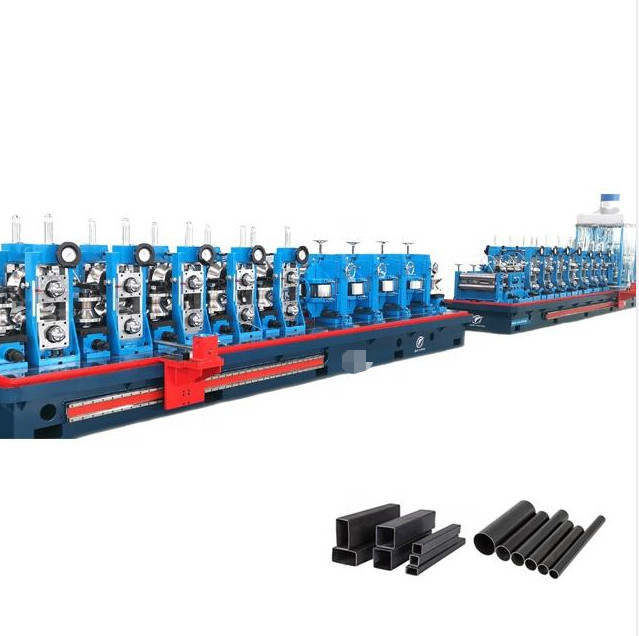

HG76 Tube Mill Machine for 32-76mm Round and Square Pipes
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes
  • HG76 Tube Mill Machine for 32-76mm Round and Square Pipes
  • HG76 Tube Mill Machine for 32-76mm Round and Square Pipes
  • HG76 Tube Mill Machine for 32-76mm Round and Square Pipes

HG76 Tube Mill Machine for 32-76mm Round and Square Pipes

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG76
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG76
Machine Name:
HG76 Roll Forming Tube Mill Machine For Hot Rolled And Cold Rolled Strip
Product:
Round Pipe
Feature:
Precision
Material:
Carbon Steel And Galvanized Steel
Other Pipe:
Square Pipe
Max Size:
76mm
Thickness:
3mm
Length:
3-6m
Rollers:
Not Include
Model:
76
Key Words:
HG76 Roll Forming Tube Mill Machine For Hot Rolled And Cold Rolled Strip
Highlight:

High Light

Highlight:

76mm Roll Forming Tube Mill

,

Cold Rolled Strip Tube Mill Machine

,

Cold Rolled Strip Tube Mill equipment

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
90 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
HG76 Roll Forming Tube Mill Machine For Hot Rolled And Cold Rolled Strip
Product Specifications
Attribute Value
Machine Name HG76 Roll Forming Tube Mill Machine For Hot Rolled And Cold Rolled Strip
Product Round pipe
Feature Precision
Material Carbon steel and galvanized steel
Other pipe Square pipe
Max size 76mm
Thickness 3mm
Length 3-6m
Rollers Not included
Model 76
Machine Description

The HG76 Automatic tube mill is engineered to produce square pipes ranging from 32-76mm with thickness of 1-3mm. Utilizing advanced roll pass design, this production line manufactures welded steel pipes with exceptional quality machining and high precision assembly.

Technical Specifications
Material Specifications:
  • Standard: International standard tube mill machine
  • Material: Galvanized steel
  • Mechanical properties: σb≤520Mpa, σs≤365MPa
  • Strip Width: 100-240mm
  • Strip Thickness: 1-3mm
  • Inner Diameter of Coils: Φ508mm
  • Outer Diameter of Coils: Φ1300～φ2000mm
  • Coil Weight: ≤2T
Pipe Specifications:
  • Pipe Diameter: Round pipe 32-76mm
  • Length: 3-6m
  • Pipe-cutting Precision: 0-6mm
  • Forming Speed: Max 90m/min for 2mm thickness
Buyer-Supplied Requirements:
  • Workshop: 60x12m, H＞5m (crane to ground)
  • Power: Approx. 3500KW 380V/60Hz/3phases
  • Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³
  • Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
  • Cable: All cable outside of machine to be purchased after machine installation
Working Process
  1. Strip steel to coil
  2. Uncoiler
  3. End straightener
  4. Flattener
  5. Shear welder
  6. Storage material unit
  7. Forming, welding, cooling, accurate pipe diameter sizing
  8. Accurate pipe length sizing, cutting
  9. Inspection
  10. Package
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 0
Tube Mill Machine Working Process
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 1
HG76 Tube Mill Machine
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 2
Machine Component Detail
Our Manufacturing Facility
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 3
Our Production Facility
Company Overview
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 4
Our Office
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 5
Our Engineering Team
Completed Projects
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 6
Recent Installation Project
Certifications
HG76 Tube Mill Machine for 32-76mm Round and Square Pipes 7
Quality Management Certifications
