HG89 Carbon Steel Tube Mill Machine for 32-89mm Pipes 3mm Thick

HG89 Carbon Steel Tube Mill Machine for 32-89mm Pipes 3mm Thick

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG89
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG89
Machine Name:
HG89 Roll Forming Tube Mill Machine For Making Carbon Steel Tube
Product:
Round Pipe
Feature:
Precision
Material:
Carbon Steel And Galvanized Steel
Other Pipe:
Square Pipe
Max Size:
89mm
Thickness:
3mm
Length:
3-6m
Rollers:
Not Include
Model:
89
Key Words:
HG89 Roll Forming Tube Mill Machine For Making Carbon Steel Tube
Highlight:

High Light

Highlight:

3.0mm Thick Roll Forming Tube Mill

,

3.0mm Thick Carbon Steel Tube Mill

,

CE Roll Forming Tube Mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
90 wording days
Payment Terms:
L/C,T/T,Western Union,
Supply Ability:
5 set/month
Product Description
CE 3.0mm Thick Roll Forming Tube Mill Machine Carbon Steel Tube Mill HG89
Product Specifications
Attribute Value
Machine Name HG89 Roll Forming Tube Mill Machine For Making Carbon Steel Tube
Product Round pipe
Feature Precision
Material Carbon steel and galvanized steel
Other pipe Square pipe
Max size 89mm
Thickness 3mm
Length 3-6m
Rollers Not included
Model 89
Product Description

The HG89 Automatic Tube Mill is engineered to produce high-quality square pipes ranging from 32-89mm in diameter with thicknesses of 1-3mm. Utilizing advanced roll pass design technology, this production line ensures precise machining and superior assembly quality for welded steel pipes.

Key Features
  • Double-radius hole style design for improved efficiency and reduced roller costs
  • Optimized for both operating characteristics and production safety
  • High precision forming and welding capabilities
  • Versatile material handling for carbon steel and galvanized steel
Technical Specifications
Material Specifications:
International standard tube mill machine
Material:
Galvanized steel (σb≤520Mpa, σs≤365MPa)
Strip Width:
100-280mm
Strip Thickness:
1-3mm
Pipe Diameter:
Round pipe: 32-76mm
Forming Speed:
Max 90m/min for 2mm thickness
Working Process
Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling → Accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging
Tube mill machine working process diagram
Tube Mill Machine Working Process

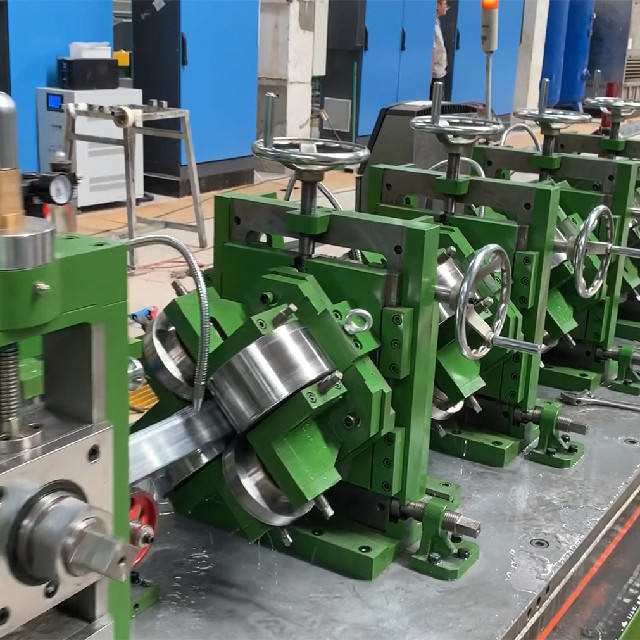

HG89 Tube Mill Machine overview Close-up of tube mill machine components
HG89 Tube Mill Machine
Facility Overview
Our factory producing tube mill machines
Our Manufacturing Facility
Company office for tube mill machine manufacturer
Our Office
Professional team of tube mill machine experts
Our Expert Team
Past Projects
Completed tube mill machine installation project
Completed Tube Mill Installation
Certifications
Tube mill machine quality management certificates
Quality Management Certificates
