Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness
  • Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness
  • Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness
  • Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness

Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG89
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG89
Machine Name:
Automatic Tube Mill Equipment Welded Pipe Making Machine CE BV Certified
Product:
Round Pipe
Feature:
Precision
Material:
Carbon Steel Galvanized
Other Pipe:
Square Pipe
Max Size:
89mm
Thickness:
3mm
Length:
3-6m
Rollers:
Not Include
Model:
89
Key Words:
Automatic Tube Mill
Highlight:

High Light

Highlight:

Roll Forming Tube Mill Equipment

,

Welded Pipe Making Machine BV Certified

,

Tube Mill Equipment BV Certified

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
90 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
Automatic Tube Mill Equipment Welded Pipe Making Machine CE BV Certified
Product Specifications
Attribute Value
Machine Name Automatic Tube Mill Equipment Welded Pipe Making Machine CE BV certified
Product Round pipe
Feature Precision
Material Carbon steel galvanized
Other pipe Square pipe
Max size 89mm
Thickness 3mm
Length 3-6m
Rollers Not included
Model 89
Product Overview

The HG89 Automatic Tube Mill is designed to produce square pipes ranging from 32-89mm with thickness of 1-3mm. Utilizing advanced roll pass design, this production line manufactures high-quality welded steel pipes with precision machining and superior assembly.

Key Features
  • Double-radius hole style design for improved efficiency
  • Enhanced operating characteristics and safety features
  • Reduced roller cost while maintaining high productivity
  • CE BV certified for quality assurance
Technical Specifications
Material Specifications:
Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 100-280mm
Strip Thickness: 1-3mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤2T
Pipe Specifications:
Pipe Diameter: Round pipe 32-76mm
Length: 3-6m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 90m/min for 2mm thickness
Working Process
  1. Strip steel to coil
  2. Uncoiler
  3. End straightener
  4. Flattener
  5. Shear welder
  6. Storage material unit
  7. Forming, welding, cooling, accurate pipe diameter sizing
  8. Accurate pipe length sizing and cutting
  9. Inspection
  10. Packaging
Machine Images

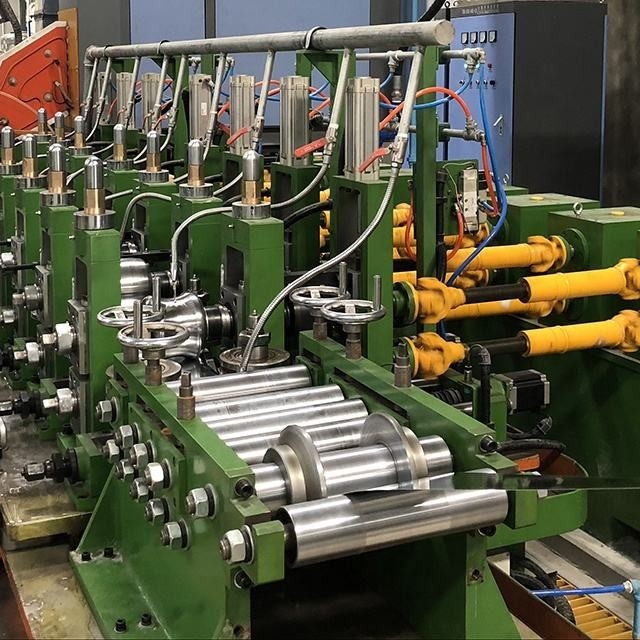

Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 0
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 1
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 2
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 3
Our Facilities
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 4
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 5
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 6
Past Projects
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 7
Certifications
Automatic Tube Mill for 32-89mm Round Square Pipes 3mm Thickness 8
