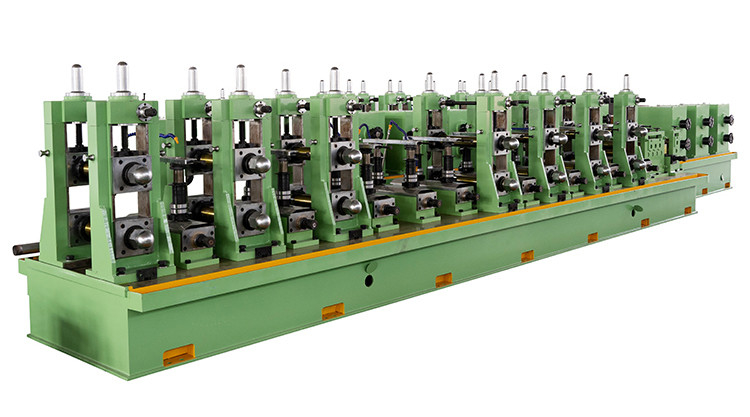

Automatic Tube Mill for 1-3mm Galvanized Steel Pipes 32-89mm

Name: Automatic Tube Mill for 1-3mm Galvanized Steel Pipes 32-89mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG89

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG89

Mill Name:

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill

Product:

Round Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Square Pipe

Max Size:

89mm

Thickness:

3mm

Length:

3-6m

Rollers:

Not Include

Model:

Key Words:

Automatic Tube Mill For Welded Steel Pipes

Highlight:

High Light

Highlight:

3mm Galvanized Steel Pipe Mill

3mm Welded Tube Mill

Automated Galvanized Steel Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill

Product Specifications

Attribute	Value
Mill Name	Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Product	Round pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Square pipe
Max size	89mm
Thickness	3mm
Length	3-6m
Rollers	Not included
Model	89

Product Overview

The HG89 Automatic Tube Mill is engineered to produce high-quality square pipes (32-89mm) and round pipes with thickness ranging from 1-3mm. Featuring advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and assembly precision.

The double-radius hole style design enhances operational characteristics, improves safety and production efficiency, while reducing roller costs.

Technical Specifications

Material Specifications:
- Standard: International standard tube mill machine
- Material: Galvanized steel
- Mechanical properties: σb≤520Mpa, σs≤365MPa
- Strip Width: 100-280mm
- Strip Thickness: 1-3mm
- Inner Diameter of Coils: Φ508mm
- Outer Diameter of Coils: Φ1300～φ2000mm
- Coil Weight: ≤2T
Pipe Specifications:
- Pipe Diameter: Round pipe 32-76mm
- Length: 3-6m
- Pipe-cutting Precision: 0-6mm
- Forming Speed: Max 90m/min for 2mm thickness
Buyer-Supplied Requirements:
- Workshop: 60x12m, H＞5m (crane to ground)
- Power: Approx. 3500KW 380V/60Hz/3phases
- Circulation Cooling Water: Flow:30+30 CBM, Pool Volume:40m³
- Compressed Air: Flow:5m³/min, Pressure: 5-7kg/cm²
- Cable: All cable outside of machine to be supplied by buyer

Production Process

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling, accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging
