| Production Name: | Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Square Tube Mill Machine | Model: | 60X60 |
|---|---|---|---|
| Feature: | Manual Or Automatic | Other Pipe: | Round ,square And Rectangular Pipe |
| Max Size: | 60X60 Mm | Thickness: | 0 . 5 - 4 . 0 Mm |
| Length: | 6 M - 12 M | Rollers: | Include |
| Warranty: | One Year | Key Words: | Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line |
| High Light: | 60X60Mm Welded Pipe Production Line,60X60Mm Square Tube Mill,Automatically Square Tube Mill |
||

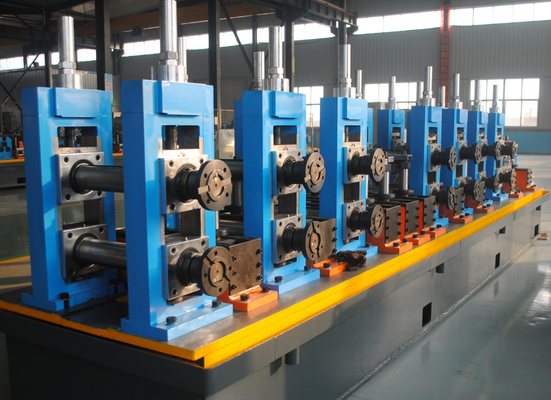

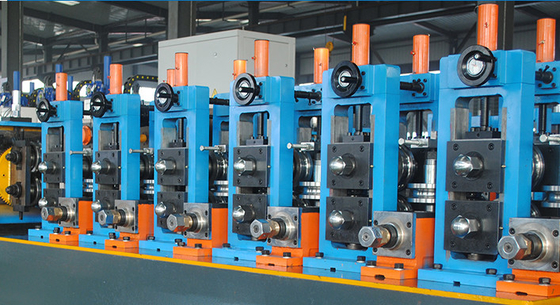

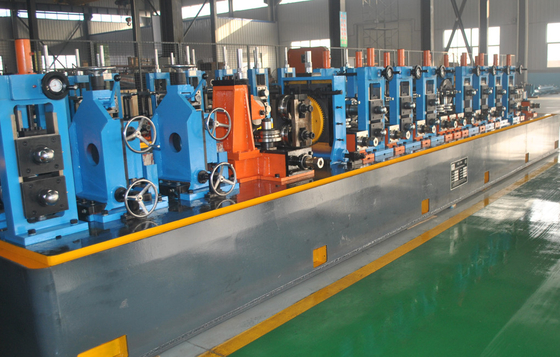

60 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Square pipe size: 20X20-60X60mm Rectangular pipe size:20X25-40X80mm Pipe thickness: 0.5-4.0mm
⑴ Material Specifications:
| Material | low carbon steel galvanize and crabon steel tube |
| Mechanical properties | σb≤520Mpa,σs≤340MPa |
| strip width | 80 - 240 mm |
| strip thickness | 0 . 5 - 4 . 0 mm |
| I.D of Coils | 508 mm |
| O.D of Coils | 1800 mm |
| Coil Weight | ≤ 3T |
⑵ Welded Pipe Specification
| Pipe Diameter | 20 X20～ 60X60 mm |
| pipe thickness | 1 . 0 - 3 . 0 mm |
| Finish pipe length | 6 m |
| Cut length accuracy | ± 2 mm |
| Forming speed | 40 - 100 m/min |
⑶ workshop require : 100 m X 8 m ,at least 5m high
Notice:You can modify it according to the actual length of the workshop
Coil preparation→coiling→uncoiling→head removal→leveling→cutting butt welding→looper storage→vertical roller alignment→delivery→vertical roller alignment→forming (13 frames)→high frequency welding→five rollers Extrusion→external burr removal→smoothing roller→water cooling device→sizing machine→saw cutting→roller table after sawing→steel pipe conveying→collecting and packing
