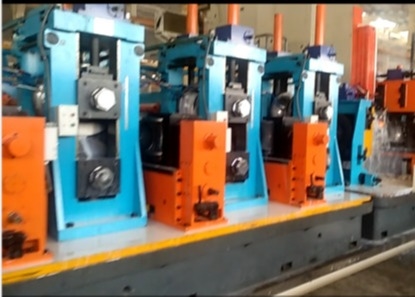

50X50-140x140mm High Precision Square Tube Mill Production Line

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	140

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

140

Production Name:

Dia 70X70-150x150MM High Precision Square Welded Pipe Production Line

Model:

50X50-140×140mm

Feature:

High Precision

Other Pipe:

Round Pipe And Rectangular Pipe And Square Pipe

Max Size:

140x140 Mm

Thickness:

2 . 0 - 5 . 0 Mm

Cutting Length:

6 - 12 M

Warranty:

One Year

Key Words:

Dia 50X50-140x140MM High Precision

Highlight:

High Light

Highlight:

140MM High Precision Tube Mill

140MM Welded Pipe Production Line

ISO9000 High Precision Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

ISO9000 50X50-140x140MM High Precision Square Tube Mill Welded Pipe Production Line

Product Specifications

Attribute	Value
Production Name	Dia 70X70-150x150MM High Precision Square Welded Pipe Production Line
Model	50X50-140×140mm
Feature	High Precision
Pipe Types	Round pipe, rectangular pipe, and square pipe
Max Size	140x140 mm
Thickness	2.0 - 5.0 mm
Cutting Length	6 - 12 m
Warranty	One year

Product Overview

The Dia 50X50-140x140MM High Precision Square Welded Pipe Production Line is designed to manufacture welded pipes ranging from 50x50-140x140mm in size with wall thicknesses of 2.0-5.0mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high assembly precision.

Technical Specifications

Material Specifications:

Standard: Conforming to YB189-64 standard

Material: Low carbon steel and low alloy constructional steel

Mechanical properties: δs≤345Mpa, δb≤610Mpa

Strip Width: 180-560mm

Strip Thickness: 2.0-5.0mm

Inner Diameter of Coils: φ480～φ570mm

Outer Diameter of Coils: φ1000～φ1800mm

Coil Weight: ≤10T

Pipe Specifications:

Pipe Diameter: Square pipe 50x50-140x140mm (same size rectangular pipe available)

Thickness: 2.0-5.0mm

Length: 4-6m

Pipe-cutting Precision: 0-6mm

Forming Speed: 10-50m/min

Buyer Requirements:

Workshop: 60x6m, H＞5m (with crane to ground)

Power: Approximately 1212KW, 380V/50Hz/3phases

Circulation Cooling Water (whole system): Flow:20T/h～30 T/h, Pool Volume:30m³

Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²

Note: Seller will supply complete requirements list

Quality Assurance

The equipment is manufactured according to relevant standards and undergoes strict testing procedures. Buyers may inspect and test the equipment at the manufacturer's facility prior to delivery.

Documentation

The seller provides comprehensive documentation including:

Foundation Plan (including water, electricity and air arrangements)
Equipment Arrangement Plan
Operation Manual (including operation instructions, maintenance procedures, troubleshooting guide, safety rules, and parts lists)
