Steel Pipe Production Line 1.5-4.0mm Thickness
Product Overview
This high frequency welded pipe mill line is designed for manufacturing welded steel pipes, combining advanced pipe making technology with innovative design for economical and practical operation.
Key Features
- Custom engineered solution
- Roller mills forming method
- 1 year warranty
- Produces both round and square steel pipes
- Thickness range: 1.5mm - 5.0mm
- Pipe diameter range: 45mm - 114mm
Production Process
- Loading car
- Uncoil
- Flattening
- End Shear & Butt Welding
- Accumulator
- Forming
- High-frequency induction welding
- Removing external burr
- Cooling
- Sizing
- Cutting
- Layout table
Technical Specifications
Material Specifications:
| Material |
Low carbon steel, galvanized and carbon steel tube |
| Mechanical properties |
σb≤520Mpa, σs≤340MPa |
| Strip width |
230 - 360 mm |
| Strip thickness |
1.5 - 4.0 mm |
| I.D of Coils |
520 - 580 mm |
| O.D of Coils |
1000 - 1600 mm |
| Coil Weight |
≤ 7T |
Welded Pipe Specifications:
| Pipe Diameter |
Φ76～φ114 mm |
| Pipe thickness |
1.5 - 4.0 mm |
| Finish pipe length |
4 - 6 m |
| Cut length accuracy |
±3 mm |
| Forming speed |
40 - 50 m/min |
Workshop Requirements: 100m × 6m, at least 5m high
Note: Can be modified according to actual workshop length requirements.

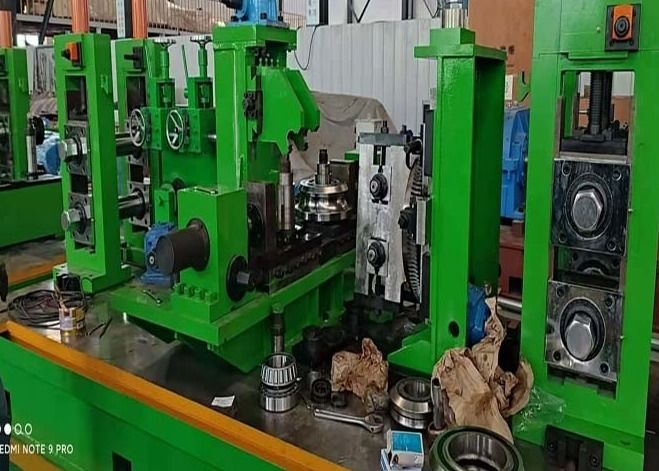

Product Images
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
