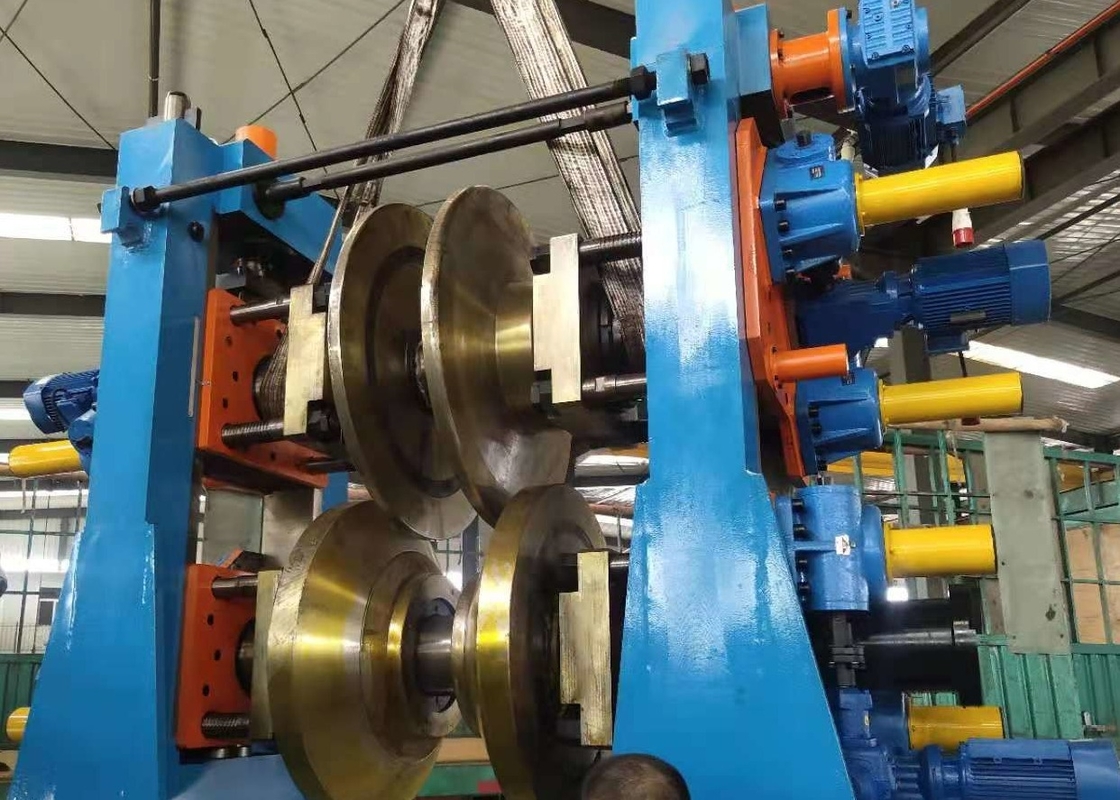

Adjustable Size 219mm Steel Tube Milling Machine 50M/Min

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	219

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

219

Production Name:

Adjustable Size Max 219mm 120mM/Min Steel Tube Milling Machine

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V

Pipe Diameter:

114-219mm

Thickness:

1.5-6mm

Speed:

50m/min

Key Words:

Adjustable Size Max 219mm 120mM/Min

Highlight:

High Light

Highlight:

50M/Min Steel Tube Milling Machine

Adjustable Size Steel Tube Milling Machine

219mm ss tube mill machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

100 working days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 Sets/Year

Product Description

Adjustable Size Max 219mm 50M/Min Steel Tube Milling Machine

Product Specifications

Attribute	Value
Production Name	Adjustable Size Max 219mm 120mM/Min Steel Tube Milling Machine
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V
Pipe diameter	114-219mm
Thickness	1.5-6mm
Speed	50m/min
Key Features	Adjustable Size Max 219mm 120mM/Min

Product Description

This 219 High-Frequency Welded Pipe Mill Line is engineered for precision production of round pipes (Diameter φ114-219mm, thickness 3-9mm). Featuring advanced roll pass design, the production line delivers welded steel pipes with exceptional machining quality and high assembly precision.

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	357～688mm
Strip thickness	1.5～6.0mm
I.D of Coils	φ508～φ610mm
O.D of Coils	φ1000～φ2000mm
Coil Weight	≤12T

Tube Mill Machine Pipe Specification

Round Pipe Diameter	φ114～φ219mm
Pipe thickness	1.5-6.0mm
Finish pipe length	8-12m
Cut length accuracy	±1.5mm
Forming speed	20-50m/min

Power, Water & Air Supply

Power Volume	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water Flow	20T/h～30 T/h
Pool Volume	30m3
Compressed Air Flow	5m3/min
Pressure	5～11kg/cm2
