| Production Name: | Adjustable Size Max 219mm 120mM/Min Steel Tube Milling Machine | Application: | Natural Gas,Drain Pipe,3 NB Tube Production |
|---|---|---|---|
| Voltage: | 380V | Pipe Diameter: | 114-219mm |
| Thickness: | 1.5-6mm | Speed: | 50m/min |
| Key Words: | Adjustable Size Max 219mm 120mM/Min | ||
| High Light: | 50M/Min Steel Tube Milling Machine,Adjustable Size Steel Tube Milling Machine,219mm ss tube mill machine |
||

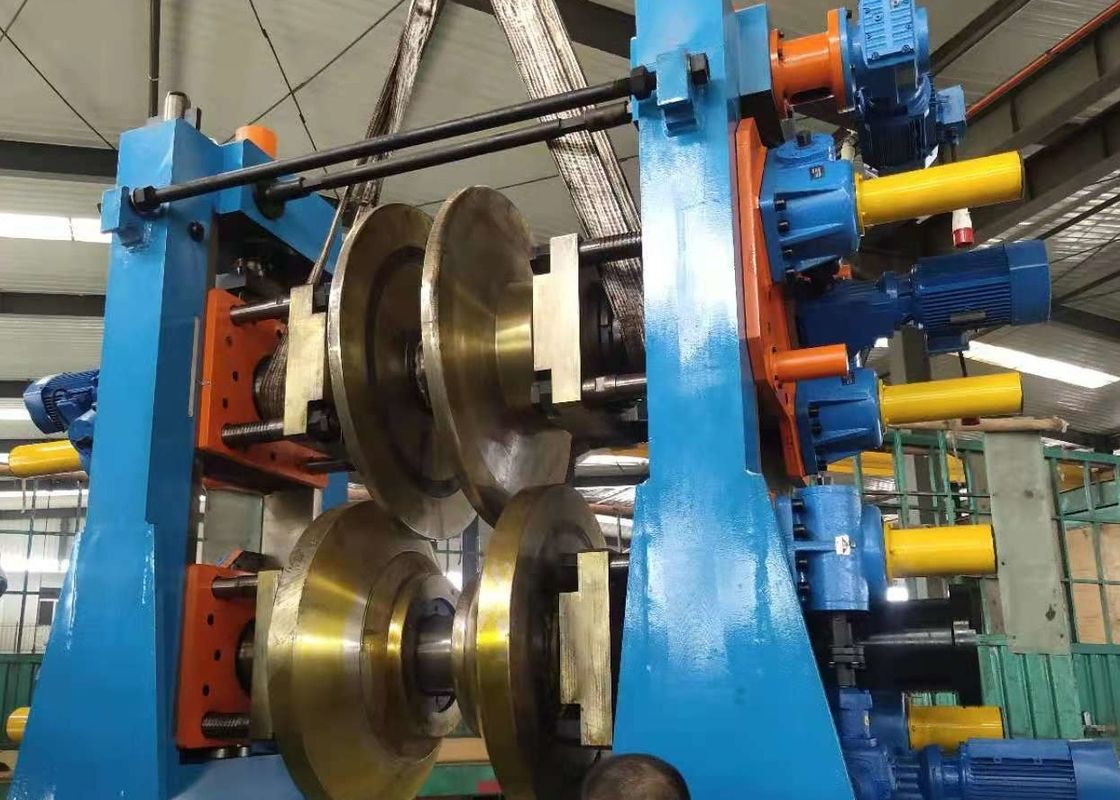

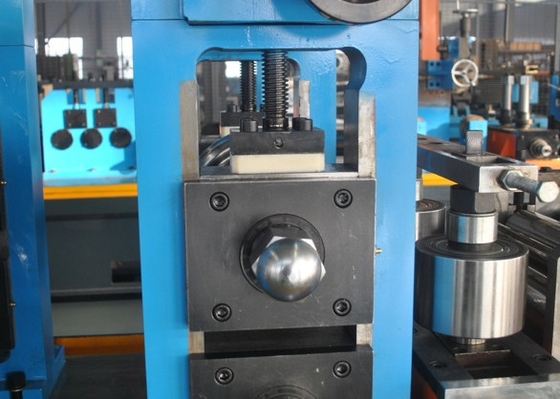

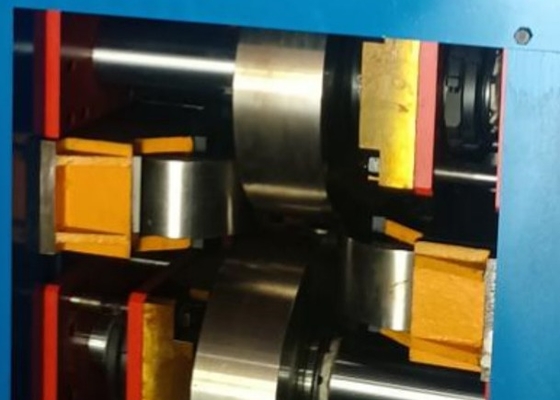

219 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diaφ114-219mm, thickness 3-9mm). Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
Material Specifications
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤520Mpa,σs≤340MPa |
| strip width | 357～688mm |
| strip thickness | 1.5～6.0mm |
| I.D of Coils | φ508～φ610mm |
| O.D of Coils | φ1000～φ2000mm |
| Coil Weight | ≤12T |
Tube Mill Machine Pipe Specification
| Round Pipe Diameter | φ114～φ219mm |
| pipe thickness | 1.5-6.0mm |
| Finish pipe length | 8-12m |
| Cut length accuracy | ±1.5mm |
| Forming speed | 20-50m/min |
Power, Water & Air Supply
| Power | Power Volume of the Line | Approx.600KW |
| Power Source | 380V/60Hz/3phases | |
| Circulation Cooling Water | Flow | 20T/h～30 T/h |
| Pool Volume | 30m3 | |
| Compressed Air | Flow | 5m3/min |
| Pressure | 5～11kg/ cm2 |
workshop require:
| 6m wide, 70m long, at least 5m high from Ceiling Rails to Ground. |
●Instruction Manual (provided at the time of a month before delivery time)
●Inspection Certificate (provided at the delivery time)
●Loading Order (Provided at the delivery time)
●Layout Drawing (provided at the time of a month before delivery time)
●Ground Base Drawing (provided at the time of a month before delivery time)
●Electrical Principle Diagram
●Overall Assembly Drawing of every unit of the line
●Part Diagram of Vulnerable Parts
