153mm Steel Pipe Production Line 1-3mm Thickness CE Certified

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	219

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

219

Mill Name:

Green Dia 153mm Thickness 1-3mm Steel Pipe Production Line With CE

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

153mm

Thickness:

1-3mm

Speed:

Max 70m/min

Key Words:

Green Dia 153mm Thickness 1-3mm With CE

Highlight:

High Light

Highlight:

153mm Welded Pipe Making Machine

153mm Steel Pipe Making Machine

Welded Pipe Making Machine CE

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 working days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

Green Dia 153mm Thickness 1-3mm Steel Pipe Production Line With CE

Product Specifications

Attribute	Value
Mill Name	Green Dia 153mm Thickness 1-3mm Steel Pipe Production Line With CE
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	153mm
Thickness	1-3mm
Speed	Max 70m/min

Product Description

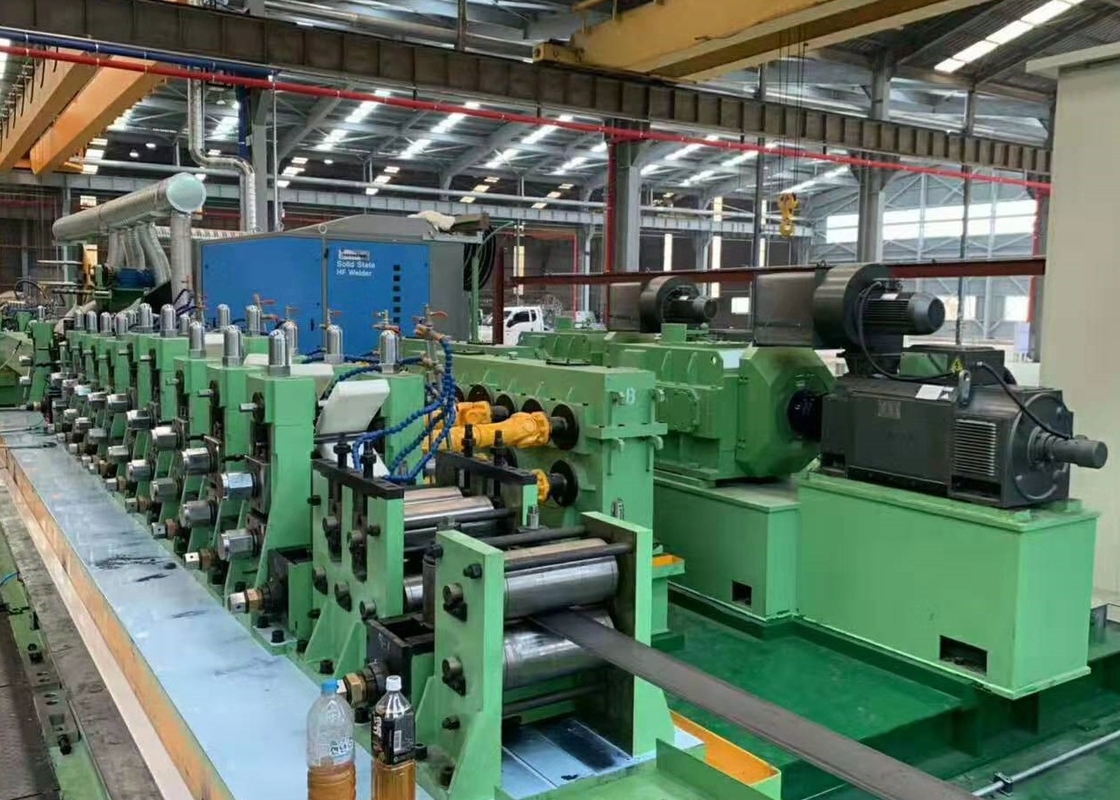

This production line is designed to manufacture high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring precision roll pass design, it delivers excellent machining quality and high assembly precision.

Production capabilities:

Round pipe: φ50-153mm
Square pipe: 40×40-120×120mm
Thickness: 1-3mm

Technical Specifications

Material Specifications
Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	157-480mm
Strip Thickness	1-3.0mm
Inner Diameter of Coils	φ480-φ520mm
Outer Diameter of Coils	φ1000-φ1800mm
Coil Weight	≤6T
Pipe Specifications
Pipe Diameter	Round pipe: φ50-153mm Square pipe: 40×40-120×120mm
Thickness	1-3mm
Length	4-12m
Pipe-cutting Precision	0-6mm
Forming Speed	30-70m/min

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize production efficiency
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
